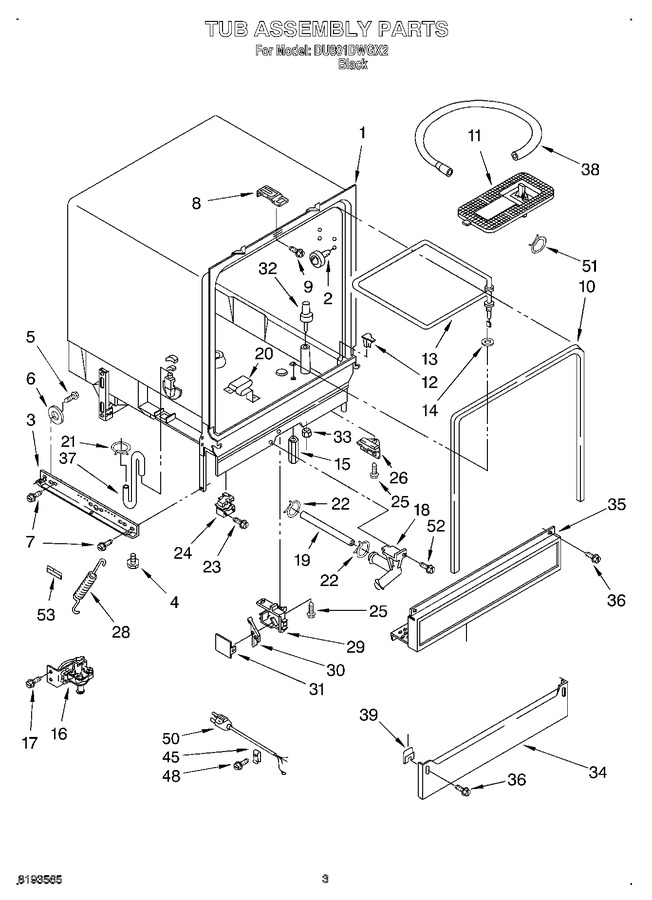

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3378159		Tub Assembly		Appelez-nous	-
2	3380371		Tub, Wheel Assembly (8)				$ 17.44
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 84.72
5	3370389		Screw, Shoulder				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.85
8	3378149		Plate, Latch				$ 44.37
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
11	WP3369322		Grate   (Replaces: 3369322)				$ 94.34
12	WP8528862		Deflector (2)   (Replaces: 8268872)				$ 63.90
13	WPW10082894		Heater (includes Item 14)   (Replaces: 3379269)				$ 134.78
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.19
15	3378706		Nut (2) (heater Terminal)		Appelez-nous	-
16	W10844024		Water Valve   (Replaces: 8283345)			Immediately	$ 96.30
17	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
18	3369421		Check, Valve Assembly		Appelez-nous	-
19	3369180		Hose, Coupler		Appelez-nous	-
20	3379740		Support, Heater (3)				$ 51.56
21	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.40
22	371499		Clamp				$ 12.95
23	WP489128		Screw   (Replaces: 3370225)				$ 10.88
24	W10102260		Relay   (Replaces: 3369063)				$ 143.07
25	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 7.75
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 77.69
28	3373228		Spring, Door (2)				$ 24.53
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP8519552		Float   (Replaces: 8519552)				$ 118.97
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel (black)		Appelez-nous	-
35	3374730		Panel, Access (black Model (with Clip Assembly))				$ 68.75
36	WP302868		Screw   (Replaces: 302868)			Immediately	$ 7.75
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP3374077		Hose, Drain   (Replaces: 3368781)			Immediately	$ 102.23
39	3378123		Clip, Grounding				$ 7.79
45	3371881		Nut		Appelez-nous	-
48	WP681414		Screw   (Replaces: 3372525)			Immediately	$ 7.85
50	3379198		Power Cord		Appelez-nous	-
51	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
52	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.06
53	8052018		Friction Pad		Appelez-nous	-
