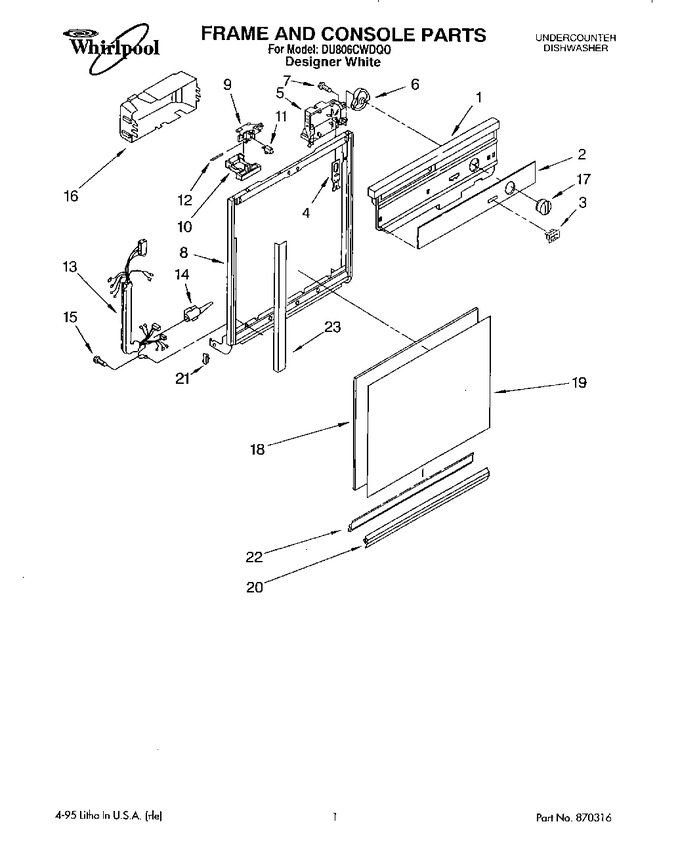

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Spray Arm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3375270		Console (includes Item 2)		Appelez-nous	-
2	3374797		Insert, Console		Appelez-nous	-
3	WP4314961		Switch, Rocker   (Replaces: 3369612)				$ 89.48
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 62.31
5	3373590		Timer		Appelez-nous	-
6	WP8271510		Cam   (Replaces: 3375140)				$ 8.11
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 7.75
8	3374711		Door Frame (includes Item 22)				$ 158.94
9	WP3380854		Bolt, Latch   (Replaces: 3368953)			Immediately	$ 66.11
10	3372231		Lever, Latch		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3373594		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw   (Replaces: 3400803)				$ 6.74
16	3368964		Cover, Timer		Appelez-nous	-
17	3375349		Knob, Timer				$ 46.12
18	3368979		Spacer, Corrugated				$ 38.99
19	3371716		Xpanel, Front (white)				$ 49.13
20	3374011		Retainer, Panel				$ 59.30
21	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 10.49
22	WP3374716		Channel, Retainer (also Order Item No.20)   (Replaces: 3374716)				$ 100.22
23	3375405		Trim (2)		Appelez-nous	-
