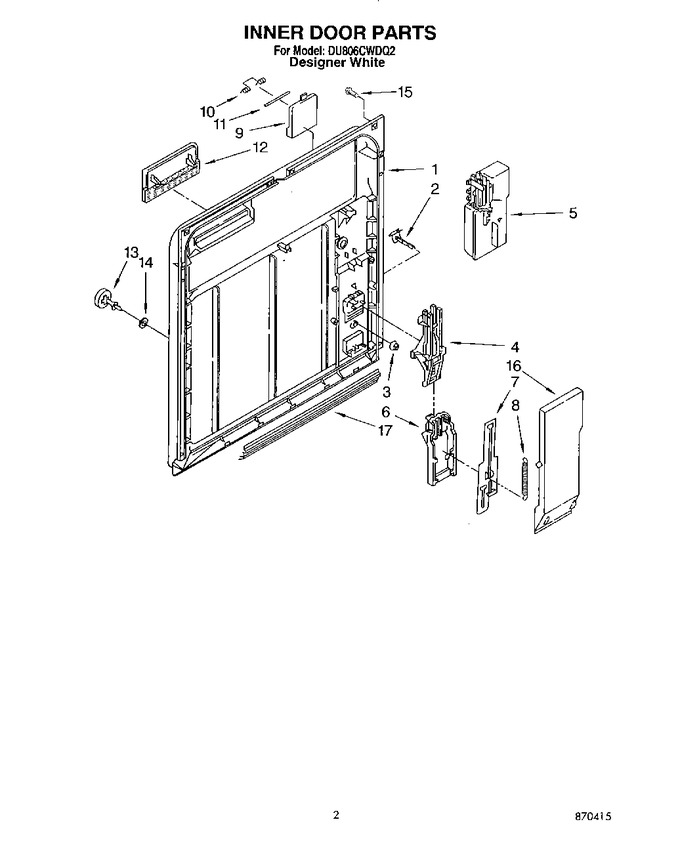

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	676413		Latch Door Kit			Immediately	$ 8.31
1	WP8528310		Inner Door (also Order)   (Replaces: 3369054)			Immediately	$ 276.33
2	676413		Latch, Detergent Dispenser   (Replaces: 3376066)			Immediately	$ 8.31
3	676413		Snap, Detergent Dispenser   (Replaces: 3369061)			Immediately	$ 8.31
4	8193646		Actuator Assembly   (Replaces: 3369055)				$ 98.70
5	WP8052027		Wet Agent, Dispenser   (Replaces: 3368967)				$ 118.28
6	3369000		Draw Bar, (upper Dispenser)				$ 5.70
7	8193646		Draw Bar (lower Dispenser)   (Replaces: 3369602)				$ 98.70
8	WP3368999		Spring (draw Bar)   (Replaces: 3368999)			Immediately	$ 7.98
9	WP3378138		Lid Assembly   (Replaces: 3376404)			Immediately	$ 28.42
10	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.87
11	WP3372028		Pin (lid Hinge) (also Order Item No.10)   (Replaces: 3372028)			Immediately	$ 10.04
12	WP3371710		Screen, Vent   (Replaces: 3371710)				$ 7.49
13	WP3378134		Wet-agent Cap Assembly   (Replaces: 3369512)			Immediately	$ 7.77
14	WP3378134		Seal (wet-cap)   (Replaces: 3369155)			Immediately	$ 7.77
15	WPW10348409		Screw   (Replaces: 3369051)			Immediately	$ 7.38
16	3371569		Cover, Drip				$ 46.59
17	3369479		Spatter Shield		Appelez-nous	-
