01 - Top And Cabinet Parts

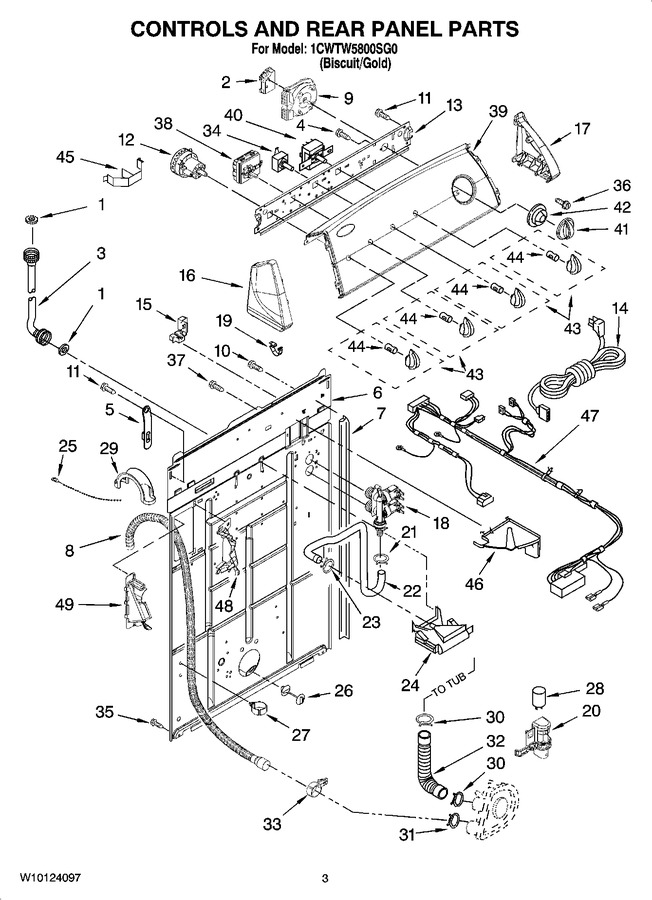

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	8576472		Circuit Board, Agitation Delay				$ 236.67
3	WP89503		Hose, Water Inlet (2) (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
4	3400073		Screw, Ground		Appelez-nous	-
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	WPW10096921		Drain Hose Assembly (includes Items 27 & 33)   (Replaces: 8559373)			Immediately	$ 67.38
9	WP8577787		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 8577787)			Immediately	$ 322.86
10	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10339250		Switch, Water Level   (Replaces: 8577842)				$ 211.80
13	8566003		Bracket, Control				$ 64.58
14	W10820044		Cord, Power (includes Item 15)   (Replaces: 8578842)				$ 142.73
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	8566036		Cap, End (l.h.) (includes Item 19)		Appelez-nous	-
17	8566033		Cap, End (r.h.) (includes Item 19)		Appelez-nous	-
18	WP3979346		Valve, Water Inlet & Thermistor Assy.   (Replaces: 3979347)			Immediately	$ 76.88
19	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
20	8318046		Clip, Capacitor				$ 79.31
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
22	WP8317926		Hose, Vacuum Break   (Replaces: 8317974)			Immediately	$ 23.69
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 18.90
27	8541667		Clamp, Hose				$ 5.86
28	WP8572720		Capacitor, Motor Start   (Replaces: 8572718)				$ 127.81
29	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.97
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.68
33	8541668		Clamp, Hose				$ 21.26
34	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 129.76
35	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
38	WP8577786		Switch, Water Temperature (atc)   (Replaces: 8577786)			Immediately	$ 163.57
39	8578812		Panel, Console		Appelez-nous	-
40	8578536		Switch, Rotary				$ 98.06
41	W10034740		Knob, Timer				$ 87.62
42	WP8566018		Dial, Timer   (Replaces: 8566018)				$ 51.04
43	W10034390		Knob, Control				$ 34.42
44	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
45	8055003		Clip, Harness & Pressure Hose				$ 36.24
46	8539874		Shield, Suds				$ 7.01
47	3958083		Harness, Wiring (includes Item 40) (for Detail See Pages 9 & 10)		Appelez-nous	-
48	WPW10096921		Bucket, Drain Hose (left Half)   (Replaces: 8541669)			Immediately	$ 67.38
49	WPW10096921		Bucket, Drain Hose (right Half)   (Replaces: 8541658)			Immediately	$ 67.38
