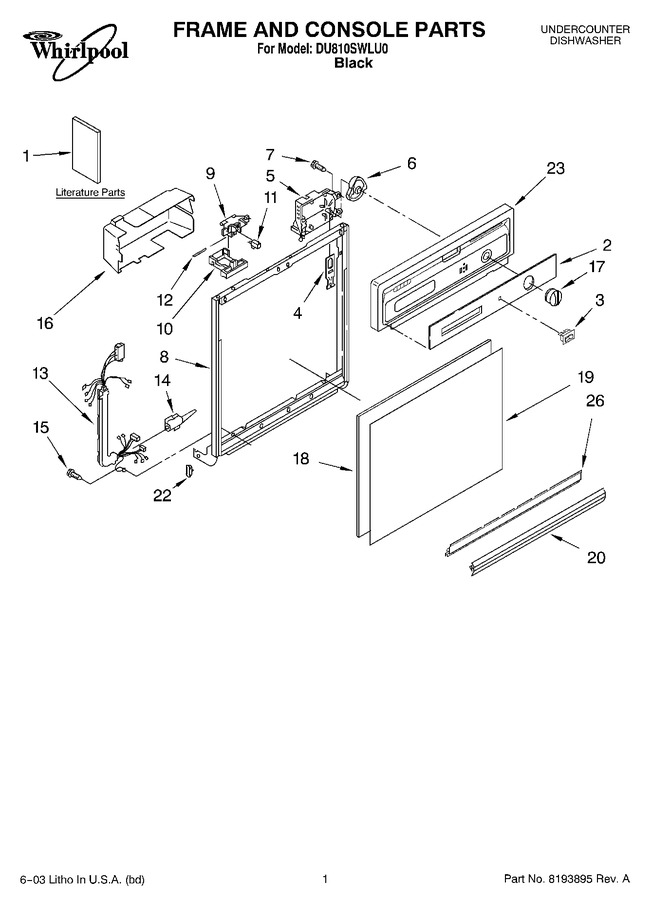

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts


07 - Optional Parts Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT0677967		Do-it Yourself Manual		Appelez-nous	-
1	LIT3385181		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3367007		Literature Parts (instructions, Instructions (supplement) (locating Your Water Supply))		Appelez-nous	-
1	LIT8534945		Literature Parts (guide, Energy)		Appelez-nous	-
1	LIT3385495		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT3385496		Literature Parts (diagram, Wiring)		Appelez-nous	-
2	3385502		Insert, Console		Appelez-nous	-
3	8051729		Switch, Rocker (black)				$ 81.19
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WP8535372		Timer   (Replaces: 3384860)				$ 333.90
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	3374711		Door Frame (includes Item 26) (black)				$ 158.94
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3385498		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8051644		Cover, Control		Appelez-nous	-
17	8275308		Knob, Timer (black)				$ 75.05
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Front Panel (white/biscuit)   (Replaces: 8274853)				$ 59.42
19	WP3369769		Front Panel (almond/black)   (Replaces: 3369516)				$ 59.42
20	3374010		Retainer, Panel				$ 40.68
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
23	3380935		Console (includes Item 2)		Appelez-nous	-
26	WP3374716		Channel, Retainer   (Replaces: 3374716)				$ 100.22
