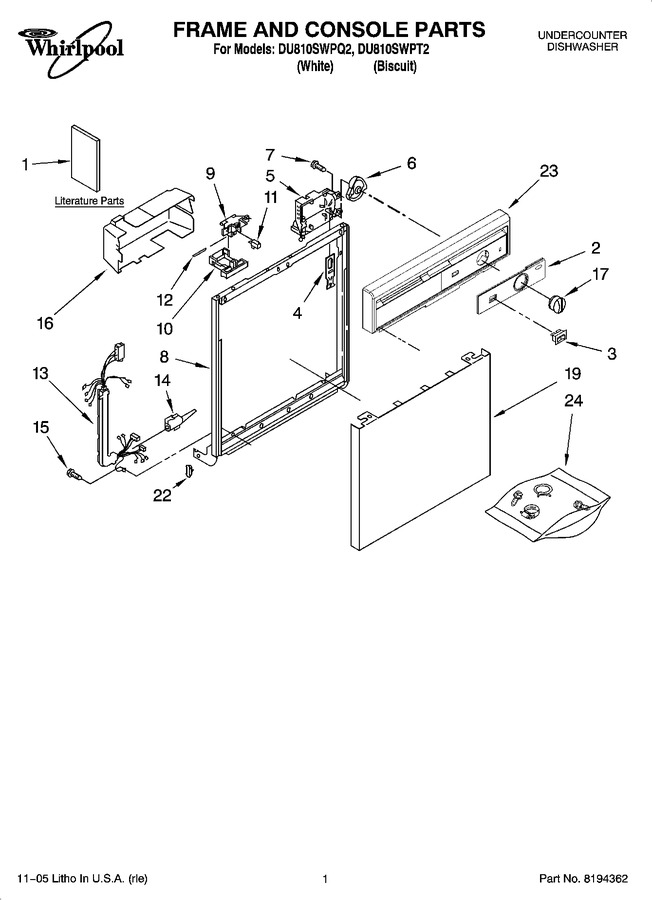

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 677967 Do-it Yourself Manual Appelez-nous -
1 8535436 Instructions, Installation Appelez-nous -
1 3367007 Instructions, Instructions (supplement) (locating Your Water Supply) Appelez-nous -
1 8535639 Guide, Energy Appelez-nous -
1 8575989 Guide, Use & Care Appelez-nous -
1 3385496 Diagram, Wiring Appelez-nous -
2 8535377 Insert, Console (white) Appelez-nous -
2 8535378 Insert, Console (biscuit) Appelez-nous -
3 8274578 Switch, Rocker (biscuit) Appelez-nous -
3 8051730 Switch, Rocker (white) Special Order $ 83.48

4 WP3369529 Follower, Cam   (Replaces: 3369529) Special Order $ 65.43

5 WP8535372 Timer   (Replaces: 8535372) Special Order $ 333.90

6 WP8271510 Cam   (Replaces: 8271510) Special Order $ 8.96

7 WP304231 Screw,   (Replaces: 304231) In-Stock Immediately $ 8.14

8 9743028 Door Frame (includes Item 22) Special Order $ 62.19

9 WP3380854 Bolt, Latch   (Replaces: 3380854) In-Stock Immediately $ 66.11

10 3375062 Lever, Latch (biscuit) Special Order $ 37.58

10 3372231 Lever, Latch White Appelez-nous -
11 3369325 Switch, (2) Appelez-nous -
12 3368955 Pin, Switch (2) Special Order $ 7.75

13 8573186 Harness And Protector Special Order $ 162.29

14 3376405 Elbow, Harness Special Order $ 14.02

15 WP3400892 Screw   (Replaces: 3400892) Special Order $ 8.24

16 8051644 Cover, Control Appelez-nous -
17 8275310 Knob, Timer (biscuit) Appelez-nous -
17 8275308 Knob, Timer (white)   (Replaces: 8275309) Special Order $ 75.05

19 3379376 +front Panel (white) Special Order $ 116.81

19 8054178 Front Panel (biscuit) Special Order $ 111.70

22 WP3373234 Bearing Spring (2)   (Replaces: 3373234) Special Order $ 11.01

23 8535321 Console (includes Item 2) (biscuit) Appelez-nous -
23 8535320 Console (includes Item 2) (white) Special Order $ 115.71

24 3369816 Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps Special Order $ 34.93
