SELECT A DIAGRAM

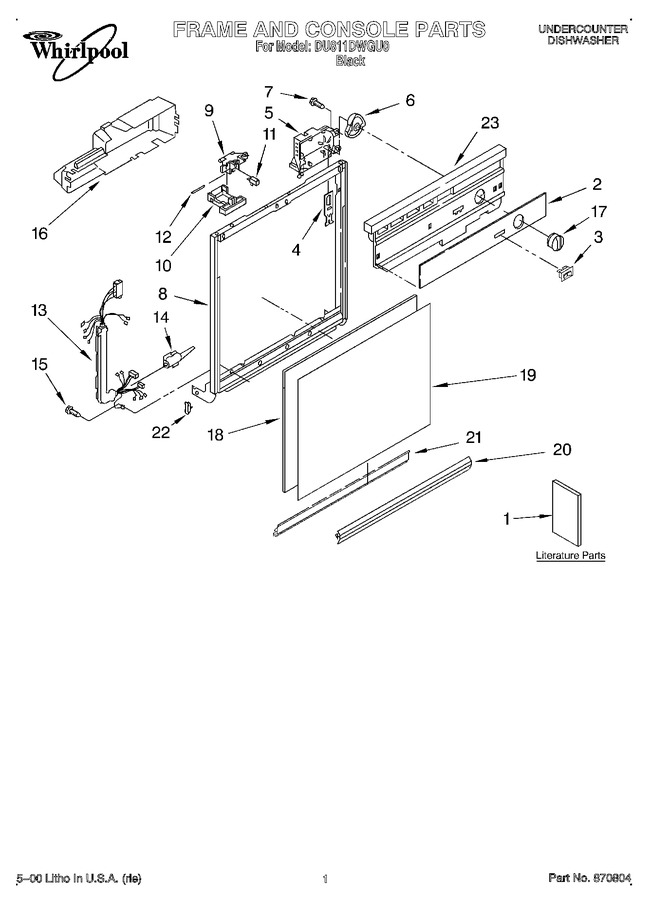

01 - Frame And Console, Literature


02 - Inner Door


03 - Tub Assembly


04 - Pump And Sprayarm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT0677967		Do-it Yourself Manual		Appelez-nous	-
1	LIT8051229		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3367007		Literature Parts (instructions, Installation (supplement) (locating Your Water Supply))		Appelez-nous	-
1	LIT8274744		Literature Parts (guide, Energy)		Appelez-nous	-
1	LIT8051219		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8051169		Literature Parts (wiring Diagram)		Appelez-nous	-
2	8051323		Insert, Console (black)		Appelez-nous	-
3	8051729		Switch, Rocker (black)				$ 77.32
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 62.31
5	3375079		Timer		Appelez-nous	-
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.11
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 7.75
8	3374711		Door Frame (includes Item 21) (black)				$ 158.94
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8051186		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw   (Replaces: 3400803)				$ 6.74
16	8051644		Cover, Control		Appelez-nous	-
17	3375348		Knob, Timer (black)				$ 64.33
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Front Panel (black/white)   (Replaces: 3369769)				$ 50.44
19	3369851		Front Panel (almond)		Appelez-nous	-
20	3374010		Retainer, Panel (black)				$ 40.68
21	WP3374716		Channel, Retainer (also Order Item No.20)   (Replaces: 3374716)				$ 100.22
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 10.49
23	8051467		Console (includes Item 2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
