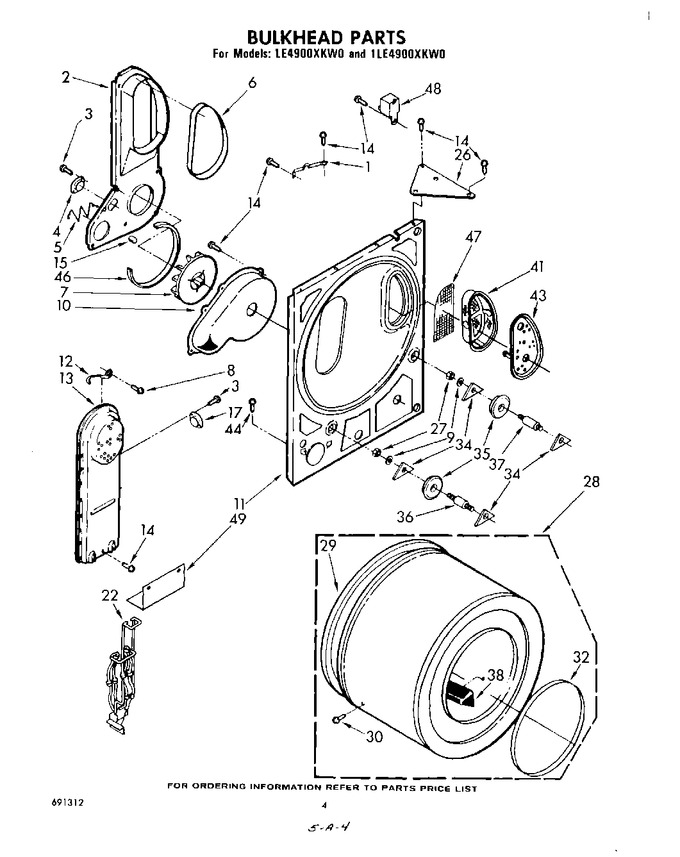

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	345396		Clip		Appelez-nous	-
2	349539		Air Duct Assembly		Appelez-nous	-
3	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.43
4	LS2-140		Thermostat, 145~f (63~c) (alternate)   (Replaces: 341200)			Immediately	$ 24.60
4	LS2-150		Thermostat, 145~f (63~c) (alternate)   (Replaces: 299621)				$ 18.35
5	345965		Guard, Exhaust				$ 71.24
6	WP339956		Seal   (Replaces: 339956)			Immediately	$ 8.15
7	345317		Wheel, Blower		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.62
9	WP348197		Washer, Support   (Replaces: 348197)				$ 6.80
10	347798		Scroll, Fan		Appelez-nous	-
11	279848		Bulkhead   (Replaces: 349725)				$ 328.30
12	279771		Clip   (Replaces: 337272)				$ 13.55
13	685457		Box, Heater		Appelez-nous	-
14	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.62
15	W10491983		Protector, Screw   (Replaces: 348235)		Appelez-nous	-
17	295432		Thermostat, 180~f (82~c) (alternate)		Appelez-nous	-
17	LS2-175		Thermostat, 180~f (82~c) (alternate)   (Replaces: 341197)			Immediately	$ 24.60
22	279506		Heater Element (use 279139 Jumper Wire For Heater Element Harness Terminal Replacement)   (Replaces: 685348)				$ 252.24
26	345325		Gusset (2)		Appelez-nous	-
27	120377		Nut, 3/8-16		Appelez-nous	-
28	00685158		Drum Assembly   (Replaces: 685158)				$ 188.69
29	279735		Seal, Rear Drum   (Replaces: 345648)			Immediately	$ 98.79
30	690372		Screw, 11-16 X 7/8		Appelez-nous	-
32	WP3394508		Bearing, Ring   (Replaces: 297936)				$ 118.67
34	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 9.14
35	349241T		Roller, Support   (Replaces: 349241)			Immediately	$ 26.70
36	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 68.72
37	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 53.65
38	00685207		Baffle, Drum Short (3)   (Replaces: 685207)				$ 293.40
41	W10828351		Screen, Lint   (Replaces: 348399)			Immediately	$ 62.64
43	W10828351		Cover, Lint Screen   (Replaces: 685273)			Immediately	$ 62.64
44	WP3390631		Screw, Tapping   (Replaces: 342202)				$ 7.43
46	345685		Seal		Appelez-nous	-
47	348378		Screen, Back-up				$ 38.60
48	686864		Buzzer, Mini		Appelez-nous	-
49	799351		Thinner (1 Gal.)		Appelez-nous	-
49	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
49	261890		New Gold		Appelez-nous	-
49	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
49	350941		Leveler (thinner)		Appelez-nous	-
49	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
49	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
49	690913		Reflector, Heat		Appelez-nous	-
49	349512		Instructions, Installation		Appelez-nous	-
49	688898		Guide, Dryer		Appelez-nous	-
49	690727		Use & Care Guide		Appelez-nous	-
49	691312		List, Service Parts		Appelez-nous	-
49	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
49	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
49	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
49	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
49	261886		Coffee		Appelez-nous	-
49	261888		New Avocado		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	261891		Xnew Gold (uncut)		Appelez-nous	-
	261889		Xnew Avocado (uncut)		Appelez-nous	-
	261887		Xcoffee (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
