View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

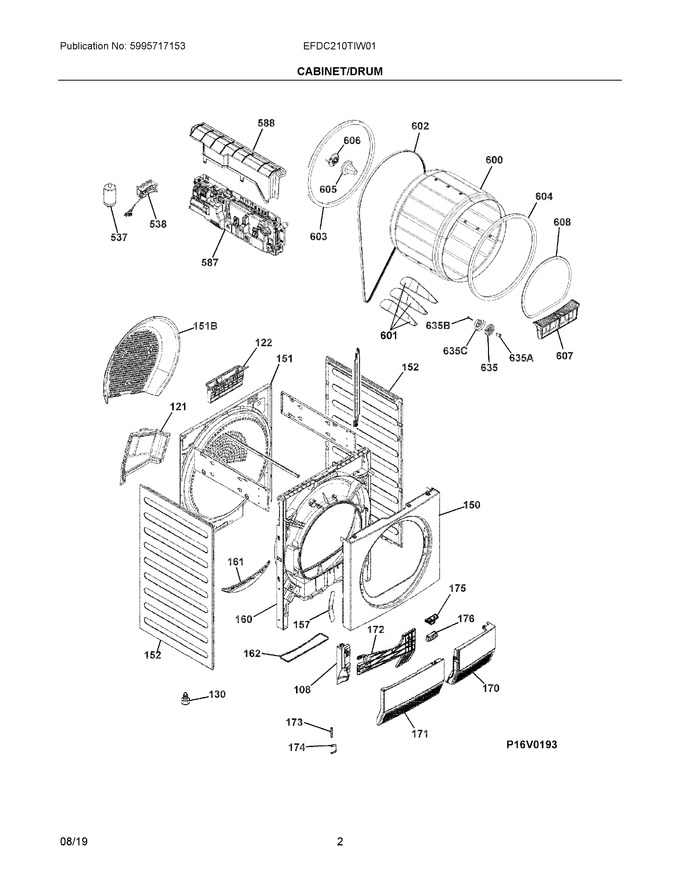

02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 108 | 136655202 | Hinge, Condenser Door |
|
$ 201.92 | |||||
| 121 | 405541956 | Cover Kit, Heating Element, W/gasket |
|
$ 46.46 | |||||
| 122 | 136602703 | Grating, Protection, Heating Element |
|
$ 393.23 | |||||
| 130 | 899647060471 | Leg, Level, Adjust |
|
Immediately | $ 79.64 | ||||
| 150 | 136436000 | Panel, Front, White |
|
$ 380.47 | |||||
| 151 | 136600571 | Panel, Back Asmy, P10, Sahara |
|
- | |||||
| 152 | 5304526177 | Panel, Side, White, Insulation (Replaces: A13207501) |
|
Immediately | $ 172.33 | ||||
| 157 | 136608900 | Cover Plate, Door Lock, White |
|
$ 48.00 | |||||
| 160 | 136600457 | Duct, Air, Front, Lamp |
|
$ 276.52 | |||||
| 161 | 136605801 | Support, Humidity Sensor |
|
$ 68.83 | |||||
| 162 | 136606100 | Gasket, Filter |
|
$ 53.55 | |||||
| 170 | 136655102 | Cover, Fr/rt Kickplate, White |
|
$ 128.89 | |||||
| 171 | 4055735239 | Door, Outer, White, Plinth (Replaces: 136655005) |
|
- | |||||
| 172 | 136655501 | Door, Inner, White, Support |
|
- | |||||
| 173 | 112331110 | Hinge Pin, Door, Plinth |
|
- | |||||
| 174 | 136608100 | Spring, Door, Plinth |
|
- | |||||
| 175 | 136602401 | Button, Door, White |
|
$ 31.50 | |||||
| 176 | 405540465 | Support Kit, Button, Door, W/spring |
|
- | |||||
| 537 | 808089303 | Filter, Anti-interfer, Power Cable |
|
$ 266.70 | |||||
| 538 | A01517003 | Terminal Block, Asmy, Wiring, Ul |
|
$ 192.31 | |||||
| 587 | 5304522655 | Board, Control, Configured |
|
$ 415.01 | |||||
| 588 | 136006502 | Cover, Main Board, Whiteshark |
|
- | |||||
| 600 | 136603050 | Drum, Complete |
|
$ 352.01 | |||||
| 601 | 807519102 | Vane, Drum, 298.3mm, Grey |
|
- | |||||
| 602 | 809183801 | Belt, Drive, L=1886.7mm |
|
$ 56.07 | |||||
| 603 | 136424300 | Gasket, Drum, Back, 1683mm |
|
$ 179.08 | |||||
| 604 | 136808930 | Gasket, Ft, Lg Opening, 17.5x20x1683mm |
|
Immediately | $ 146.77 | ||||
| 605 | 136655401 | Cone, Agitator, Anti-entangle |
|
$ 69.51 | |||||
| 606 | 136623702 | Cone, Anti-entangle, Base |
|
$ 38.12 | |||||
| 607 | 136601901 | Filter, Fluff |
|
$ 214.99 | |||||
| 608 | 5304537467 | Gasket, Lg Opening, Front (Replaces: 136606311) |
|
$ 23.93 | |||||
| 635 | 807787703 | Roller, Support, Drum |
|
- | |||||
| 151B | 405542582 | Bulkhead Kit, Rear, Plastic, W/insl Mat |
|
$ 91.14 | |||||
| 175A | 405512360 | Button, Door, White |
|
- | |||||
| 635A | 125425004 | Bushing, Support, Roller |
|
$ 144.11 | |||||
| 635B | 124022201 | Bolt, 5, 5x38 |
|
$ 48.83 | |||||
| 635C | 809166602 | Cover, Metal, Roller |
|
$ 29.73 | |||||
| NI | 136608610 | Felt, Disc, ?24/?12mm |
|
$ 54.34 | |||||
| NI | 5304505408 | Power Cord, Electric Svce, 240, 4-wire Canada (Replaces: 134502300) |
|
$ 216.24 |
