SELECT A DIAGRAM

01 - Cover Sheet

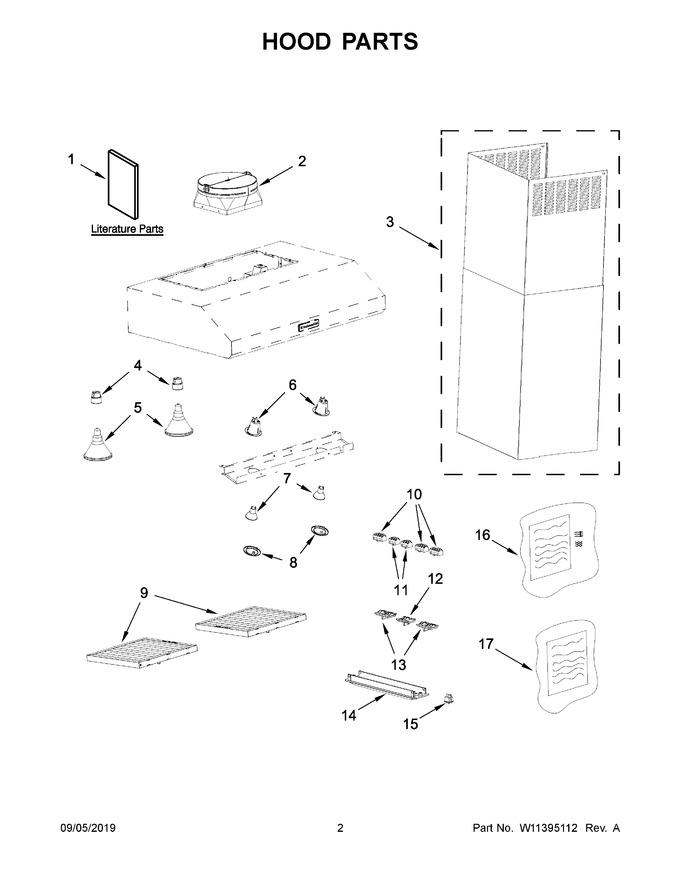

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11374535		Owners Manual		Appelez-nous	-
2	W11156393		Assembly, Damper				$ 214.28
3	W11417439		Chimney, Upper And Lower   (Replaces: W11388446)				$ 439.79
4	W10294008		Socket, Ir Lamp				$ 84.36
5	WPW10294005		Lamp, Ir   (Replaces: W10294005)			Immediately	$ 296.71
6	WPW10370558		Socket, Light   (Replaces: W10370558)				$ 87.43
7	W11800238		Lamp, Led   (Replaces: W11388445)			Immediately	$ 87.63
8	W10351924		Bezel, Lamp				$ 197.59
9	W10351890		Filter, Grease				$ 117.92
10	W10853393		Switch, Rocker (motor)   (Replaces: W10351916)			Immediately	$ 230.38
11	W11193832		Switch, Rocker (on/off)   (Replaces: W10351915)				$ 215.60
12	W11662407		Slider, Switch   (Replaces: W11397924)			Immediately	$ 42.32
13	W11569415		Slider, Switch   (Replaces: W11397923)			Immediately	$ 30.31
14	W11387938		Panel, Switch   (Replaces: W11360634)			Immediately	$ 167.51
15	W10351934		Switch, (on/off)				$ 73.64
16	W10663963		Kit, Filter Installation		Appelez-nous	-
17	W11565654		Hardware, Install   (Replaces: W10351931)				$ 234.63
NI	W10225949		Accessories Kit, Backsplash, 36" With Solid Shelf				$ 2,040.91
NI	W10225948		Accessories Kit, Backsplash, 48" With Solid Shelf		Appelez-nous	-
NI	W10352736		Accessories Kit, Backsplash, 48" Without Shelf				$ 621.74
NI	W10352735		Accessories Kit, Backsplash, 36" Without Shelf				$ 727.94

    View Diagram in Separate Window       Print Part List
