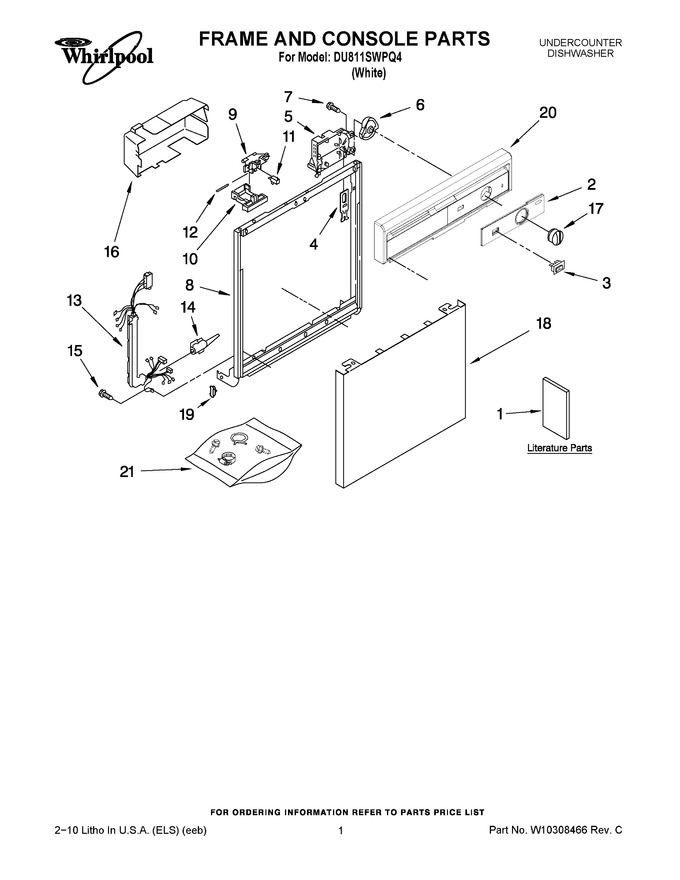

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535436		Instructions, Installation		Appelez-nous	-
1	W10255095		Instructions, Installation (supplement) (connecting Your Water Supply)		Appelez-nous	-
1	W10254973		Energy Guide		Appelez-nous	-
1	W10130987		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10133162		Guide, Use & Care (spanish)		Appelez-nous	-
2	W10039500		Insert, Console		Appelez-nous	-
3	8051730		Switch, Rocker				$ 83.48
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WPW10199588		Timer   (Replaces: W10039490)				$ 351.31
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3372231		Lever, Latch		Appelez-nous	-
11	3369325		Switch		Appelez-nous	-
12	3368955		Pin, Switch				$ 7.75
13	W10102566		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	W10299385		Cover, Control		Appelez-nous	-
17	8275308		Knob, Timer   (Replaces: 8275309)				$ 75.05
18	3379376		Front Panel				$ 116.81
19	WP3373234		Bearing, Spring   (Replaces: 3373234)				$ 11.01
20	W10072740		Console (includes Item 2)				$ 115.06
21	3369816		Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps				$ 34.93
