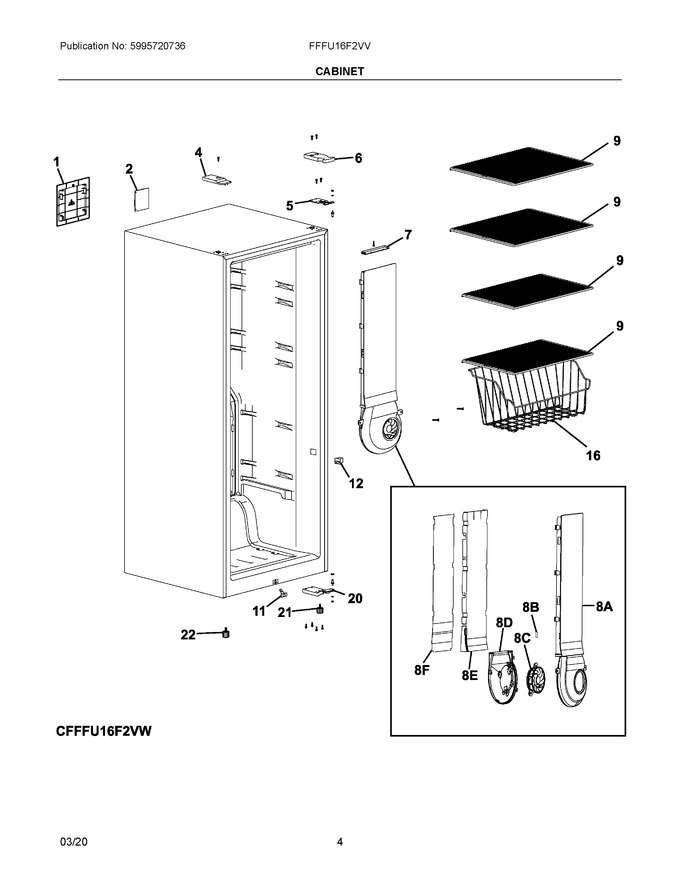

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304534457		Cover, Pcb   (Replaces: 5304521524)				$ 38.52
2	5304537682		Main Board   (Replaces: 5304521525)			Immediately	$ 141.67
4	5304522728		Cover, Hinge Hole				$ 42.53
5	5304521526		Hinge, Upper				$ 84.44
6	5304522727		Cover, Hinge, Upper				$ 48.77
7	5304521557		Board, Led			Immediately	$ 168.97
9	5304521546		Shelf, Wire, Lower			Immediately	$ 99.16
11	5304521909		Light Assembly, Indicator, Power On				$ 31.62
12	5304524331		Switch, Door			Immediately	$ 65.28
16	5304522724		Wire Basket				$ 214.35
20	5304521544		Hinge, Lower				$ 94.55
21	5304518500		Foot, Cabinet, Gray, Adjustable			Immediately	$ 37.58
22	5304518499		Foot, Cabinet, Gray			Immediately	$ 50.10
8A	5304534458		Cover, Air Tower, Upper   (Replaces: 5304521552)				$ 45.65
8B	5304521553		Sensor				$ 75.71
8C	4056022561		Fan   (Replaces: 5304521548)			Immediately	$ 128.71
8D	5304521550		Cover, Fan				$ 101.17
8E	5304521549		Cover		Appelez-nous	-
8F	5304521551		Insulation		Appelez-nous	-
NIA	5304521555		Cover, Lamp				$ 45.55
NIB	5304521556		Base, Lamp			Immediately	$ 51.34
