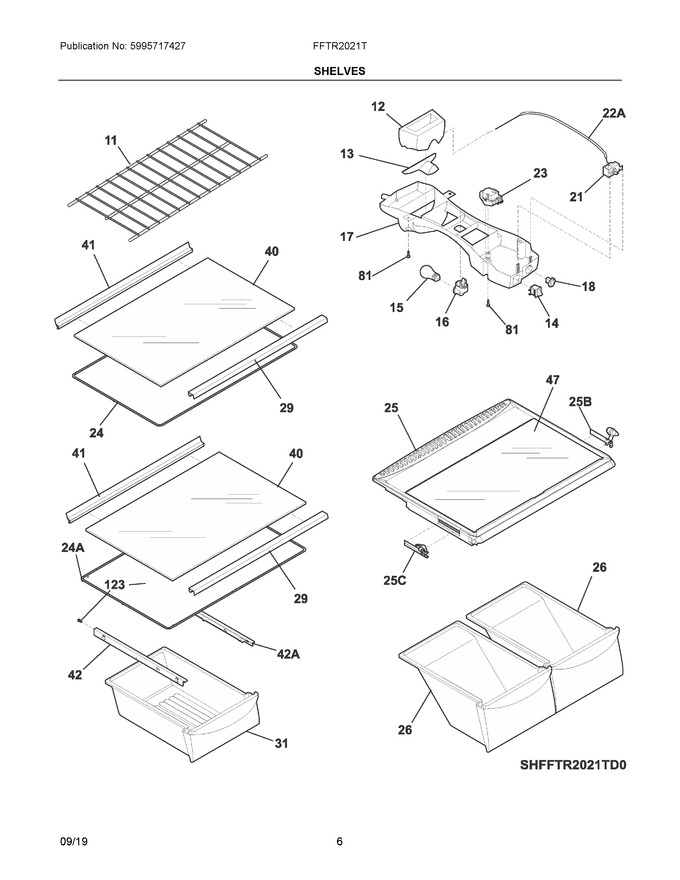

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358009		Shelf, Freezer, Full-width, Wire				$ 82.45
12	240545901		Diffuser-air, Top				$ 77.96
13	240362601		Diffuser, Air, Bottom			Immediately	$ 46.46
14	241554901		Switch-light/lamp				$ 78.75
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 22.75
16	241559801		Socket-light				$ 80.75
17	240368105		Box-control, Front			Immediately	$ 144.93
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control-temperature			Immediately	$ 80.34
23	241705102		Timer-defrost			Immediately	$ 126.12
24	240372407		Frame-shelf, Sliding, Full Width				$ 151.68
25	240364790		Cover-crisper Pan				$ 135.66
26	240343803		Pan, Crisper, (2)			Immediately	$ 191.01
29	240357704		Trim-shelf, Front			Immediately	$ 73.61
31	240530811		Pan-meat, W/o Graphics, Clear   (Replaces: 240530803)			Immediately	$ 150.86
40	240350621		Glass-shelf, 23.78 X 18.02, Full Shelf				$ 179.55
41	240561502		Trim-shelf, Rear			Immediately	$ 79.54
42	240530601		Track, Meat Pan Hanger, Lh			Immediately	$ 73.31
47	240350609		Insert-pan Cover, Glass				$ 180.33
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
123	215005101		Screw, Hanger/rlr Mtg, 8-10 X 7/16				$ 16.54
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White				$ 10.11
24A	240372408		Frame-shelf, Sliding, Full Width, W/hanger Tabs			Immediately	$ 186.64
25B	241613501		Control-humidity, Rh			Immediately	$ 13.39
25C	241613502		Control-humidity, Lh				$ 53.09
42A	240530701		Track, Meat Pan Hanger, Rh			Immediately	$ 73.31
NI	5304510954		Label, Energy Guide		Appelez-nous	-
NIA	240570302		Tape, Aluminum, 7", 17*		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.88
NIB	242081702		Wiring Harness, Control Box		Appelez-nous	-
