01 - Cover Sheet

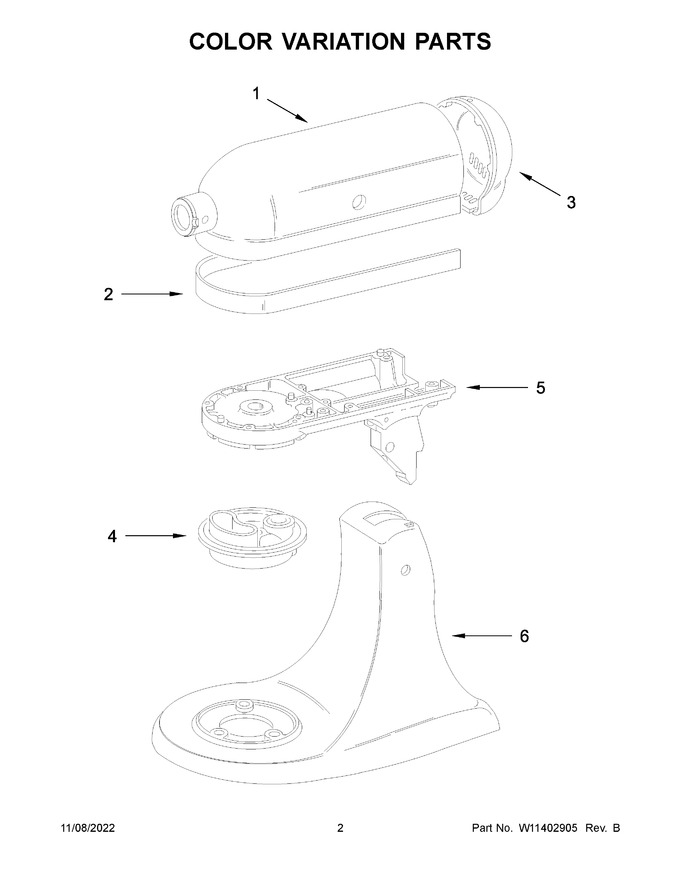

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11170225 | Motor Housing (black Matte) (Replaces: W10885700) |
|
- | |||||
| 2 | W11188411 | Trim Band (platinum) (Replaces: W10863292) |
|
- | |||||
| 3 | W11170239 | End Cover (black Matte) (Replaces: W10885707) |
|
- | |||||
| 4 | W11170306 | Planetary (black Matte) (Replaces: W10885706) |
|
$ 26.56 | |||||
| 5 | W11170233 | Lower Gearcase (black Matte) (Replaces: W10885699) |
|
- | |||||
| 6 | W11185575 | Pedestal With Feet And Headlock (black Matte) |
|
- | |||||
| 1A | W11266860 | Motor Housing (lavender Cream) |
|
- | |||||
| 1B | W11113872 | Motor Housing (milkshake/matte Milkshake) |
|
- | |||||
| 3A | W10678729 | End Cover (lavender Cream) |
|
- | |||||
| 3B | W11113835 | End Cover (milkshake/matte Milkshake) |
|
- | |||||
| 4A | W10678731 | Planetary (lavender Cream) |
|
- | |||||
| 4B | W11113886 | Planetary (milkshake/matte Milkshake) |
|
- | |||||
| 5A | W10678734 | Lower Gearcase (lavender Cream) |
|
- | |||||
| 5B | W11113859 | Lower Gearcase (milkshake/matte Milkshake) |
|
- | |||||
| 6A | W11266841 | Pedestal With Feet And Headlock (lavender Cream) |
|
- | |||||
| 6B | W11259895 | Pedestal With Feet And Headlock (milkshake/matte Milkshake) |
|
- |
