Optional Accessories


Room Air Conditioner

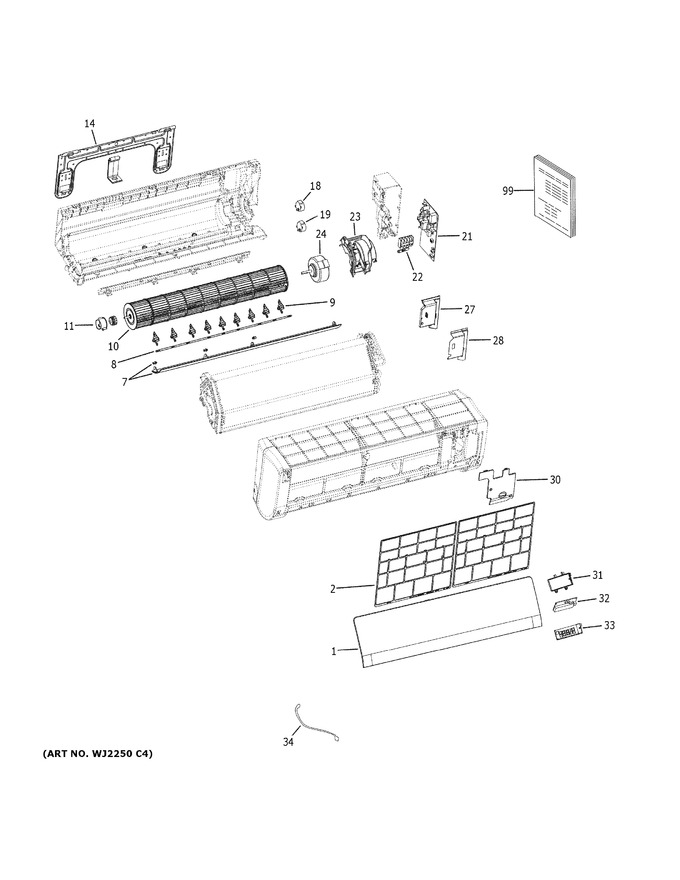

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X25433		Top Cover		Appelez-nous	-
2	WJ85X23025		Air Filter				$ 16.65
7	WJ71X23034		Horizontal Louver		Appelez-nous	-
8	WJ65X23033		Connecting Rod		Appelez-nous	-
9	WJ71X23045		Vertical Louvre		Appelez-nous	-
10	WJ73X23027		Cross Flow Fan		Appelez-nous	-
11	WJ73X23028		Cross Flow Fan Bearing		Appelez-nous	-
14	WJ65X23038		Mounting Plate				$ 15.30
18	WJ94X23041		Horizontal Louver Motor				$ 30.18
19	WJ94X23040		Vertical Louver Motor		Appelez-nous	-
21	WJ26X25213		Indoor Power Control Board		Appelez-nous	-
22	WJ26X23043		Terminal Block		Appelez-nous	-
23	WJ76X23036		Indoor Motor Cover		Appelez-nous	-
24	WJ94X23035		Indoor Motor				$ 146.12
27	WJ76X24720		Electrical Box Cover (plastic)		Appelez-nous	-
28	WJ76X24360		Electrical Box Cover (metal)		Appelez-nous	-
30	WJ76X23141		Cover		Appelez-nous	-
31	WJ76X23235		Display Board Box		Appelez-nous	-
32	WJ26X23236		Display Panel				$ 51.91
33	WJ71X25111		Display Board Cover		Appelez-nous	-
34	WJ26X23042		Temperature Sensor Assembly				$ 19.55
59	WJ87X31368		Evaporator Coil		Appelez-nous	-
60	WJ76X31374		Casing Assembly		Appelez-nous	-
61	WJ71X24719		Vertical Louvre Assembly		Appelez-nous	-
68	WJ76X24226		Electrical Box		Appelez-nous	-
99	49-5000277		Pm Owners Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
