SELECT A DIAGRAM

Cabinet


Door


Machine Compartment


Monogram Customization


Shelves & Drawers

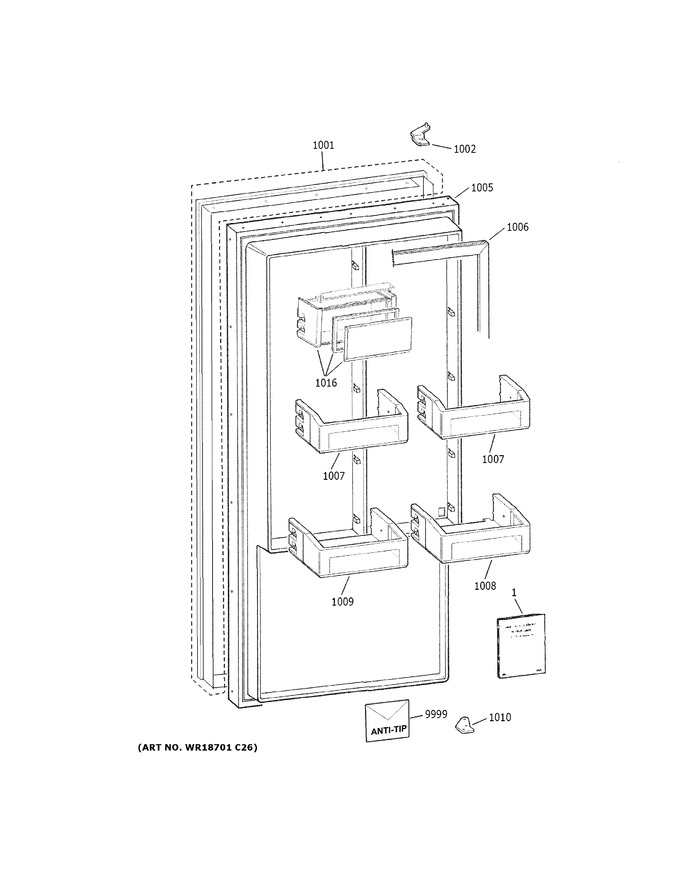

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51976		Pm Mini Manual		Appelez-nous	-
1001	WR78X32601		Stainless Single Door Wrap		Appelez-nous	-
1001	WR78X43645		Stainless Single Door Wrap Lh		Appelez-nous	-
1002	WR13X25051		Hinge Asm Door Top Lh		Appelez-nous	-
1005	WR78X32602		Refrigerator Single Door		Appelez-nous	-
1006	WR78X20986		Door Gasket Sd		Appelez-nous	-
1007	WG02L00043		Bin Ff Door W/window   (Replaces: WR71X10138)				$ 105.03
1008	WR01L08881		Bin Door Ff Deep Rh   (Replaces: WR71X10139)				$ 94.48
1009	WG03L00003		Bin Door Ff Deep Lh   (Replaces: WR71X10140)				$ 107.67
1010	WR13X10657		Hinge Door Btm		Appelez-nous	-
1016	WR71X10142		Assy Dairy Comp		Appelez-nous	-
9999	WR49X21844		Anti-tip Hardware Asm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
