02 - Frame And Console


03 - Inner Door


04 - Tub Assembly


05 - Pump And Spray Arm


06 - Pump And Motor


07 - Dishrack


08 - Miscellaneous, Lit/optional

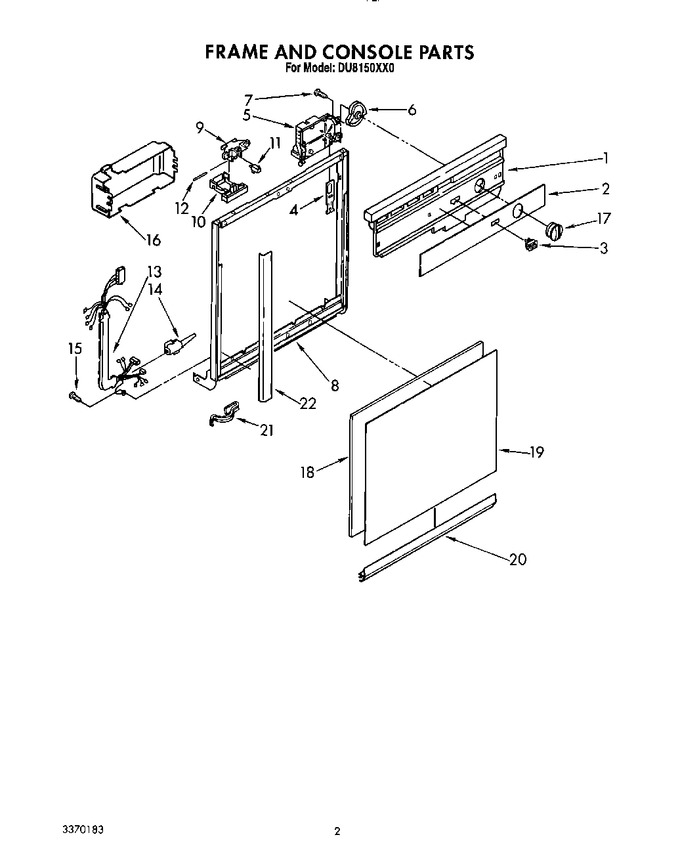

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3369607		Console		Appelez-nous	-
2	3371734		Insert, Console		Appelez-nous	-
3	WP4314961		Switch, Rocker   (Replaces: 3369612)				$ 93.95
4	3368997		Follower, Cam				$ 35.20
5	3370832		Timer		Appelez-nous	-
6	3369415		Cam		Appelez-nous	-
7	WP304231		Screw, 8-18 X 1/2 (3)   (Replaces: 304231)			Immediately	$ 8.14
8	3368900		Door Frame		Appelez-nous	-
9	WP3380854		Bolt, Latch   (Replaces: 3368953)			Immediately	$ 66.11
10	WP3368954		Lever, Latch   (Replaces: 3369573)				$ 8.70
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3369869		Harness And Protector		Appelez-nous	-
14	3368977		Elbow, Harness		Appelez-nous	-
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 9412221)				$ 7.08
16	3368964		Cover, Timer		Appelez-nous	-
17	3369611		Knob, Timer		Appelez-nous	-
18	3368979		Spacer, Corrugated				$ 38.99
19	3371716		+front Panel (white)				$ 49.13
20	3370858		Retainer, Panel		Appelez-nous	-
21	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
22	3371194		Trim, Side (2)		Appelez-nous	-
