SELECT A DIAGRAM

01 - Cover Sheet

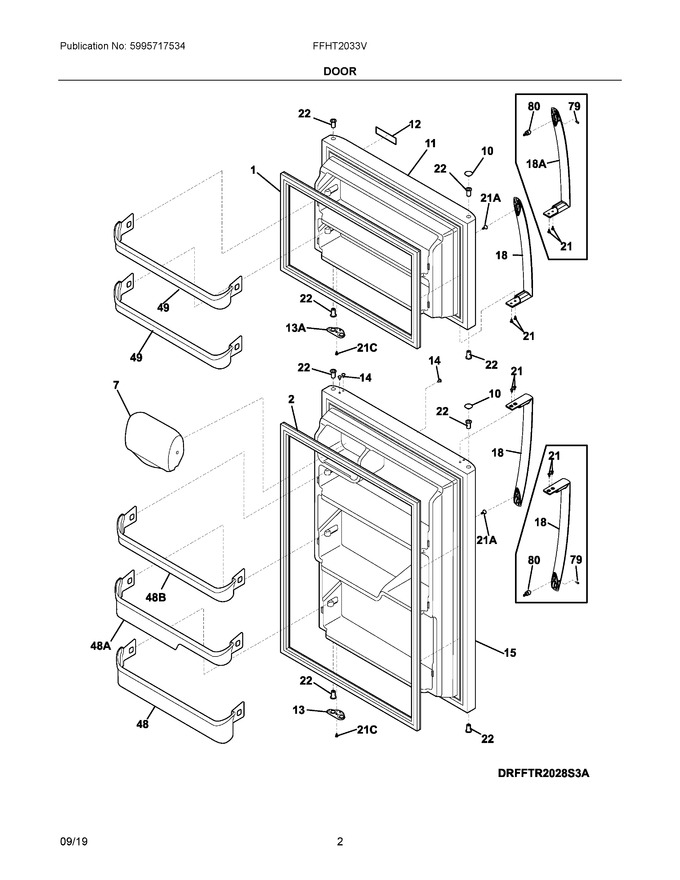

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193211		Gasket-frzr Door, Black, Magnetic				$ 207.90
2	242193214		Gasket-refr Door, Black, Magnetic				$ 212.06
7	240337712		Door-dairy, W/o Graphics, Clear   (Replaces: 240337703)			Immediately	$ 40.45
10	240381307		Plug-button, Gray, Hinge Brg Hole, (2)			Immediately	$ 18.54
11	242178015		Door, Freezer, Stainless, Complete Assy				$ 563.96
12	5304511146		Badge, Frigidaire, Chrome			Immediately	$ 52.25
13	240312422		Door Stop, Black, Ref				$ 16.85
14	240494007		Plug-button, Gray			Immediately	$ 17.69
15	242178112		Door, Refrigerator, Stainless, Complete				$ 663.97
18	5304511368		Handle, Door, Stainless, Ref Rhs, W/set Screw				$ 243.52
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507147		Bearing-hinge, Black, (8)			Immediately	$ 8.43
48	240338101		Bin-door			Immediately	$ 58.19
49	240495805		Bin-door, Pseudo, Frzr				$ 56.60
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 22.84
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
13A	240312415		Door Stop, Black, Frzr				$ 23.63
18A	5304511369		Handle, Door, Stainless, Frz Rhs, W/set Screw				$ 279.75
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
48A	240337901		Bin-door			Immediately	$ 57.92
48B	240338001		Bin-door			Immediately	$ 38.84
NIA	241601001		Wrench, Allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
