SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

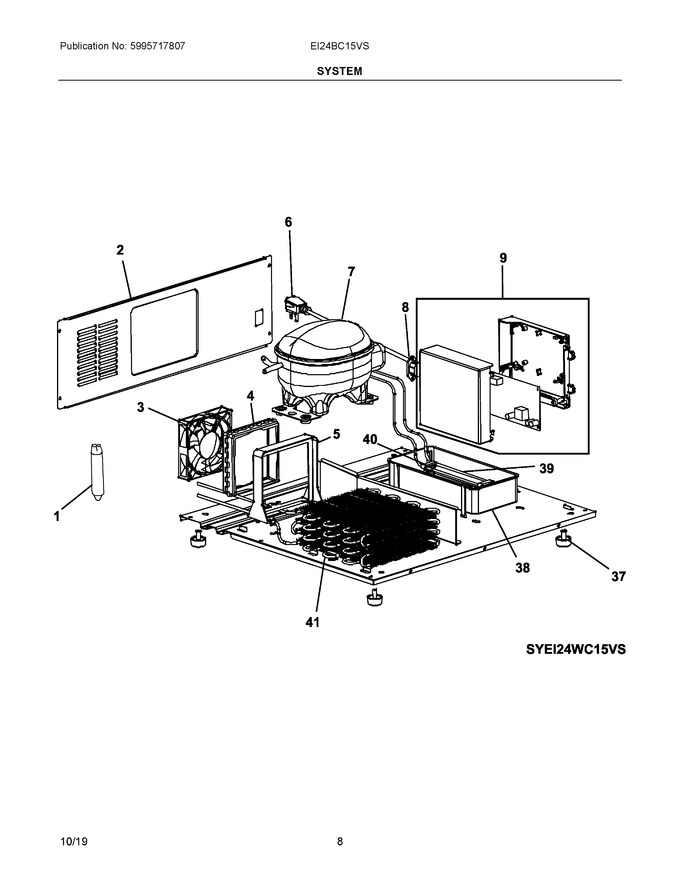

1	5304522396		Drier Assembly, Filter				$ 33.04
2	5304522397		Cover, Access, Rear		Appelez-nous	-
3	5304522398		Fan Assembly, Condenser				$ 117.13
4	5304522399		Sleeve, Cond Fan, Shock Proof		Appelez-nous	-
5	5304522400		Support, Cond Fan		Appelez-nous	-
6	5304522401		Power Cord, Elec Service		Appelez-nous	-
7	5304522672		Compressor, Assembly				$ 652.87
8	5304522404		Receptacle, Power Cord		Appelez-nous	-
9	5304522673		Pc Board Assembly, Main, W/housing				$ 383.68
37	5304522409		Leg, Cabinet				$ 10.11
38	5304522410		Drain Pan		Appelez-nous	-
39	5304522411		Tube, Connecting		Appelez-nous	-
40	5304522412		Clip, Silicon		Appelez-nous	-
41	5304522418		Condenser, Assembly				$ 124.71

    View Diagram in Separate Window       Print Part List
