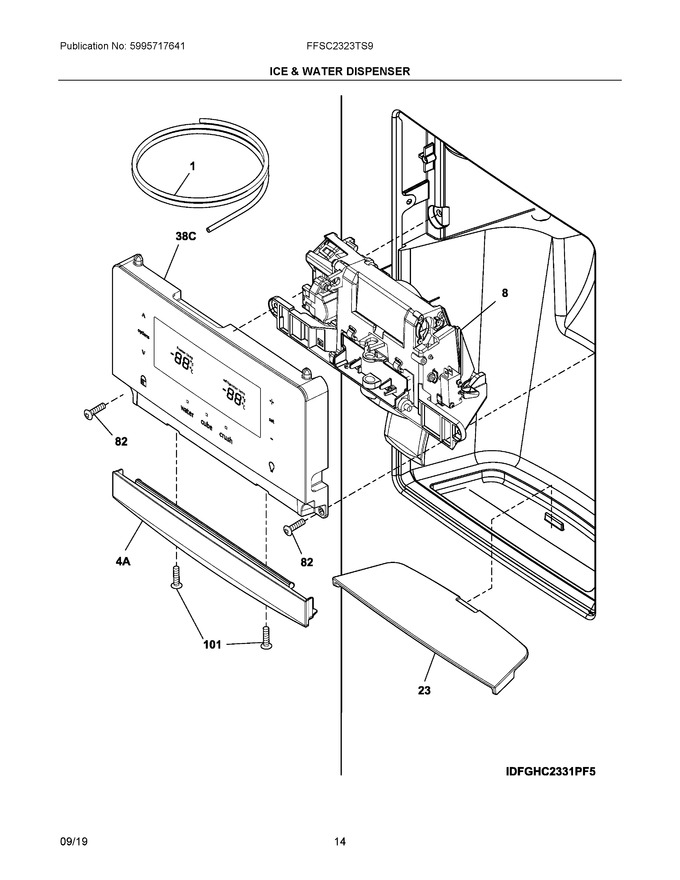

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural 62", Door, Btm Door To Dsp |
|
Immediately | $ 22.84 | ||||
| 8 | 242270107 | Module, Dispenser, Clear, W/paddle |
|
$ 232.56 | |||||
| 23 | 242176503 | Sump, Dispenser, Grey |
|
$ 126.79 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 19.01 | ||||
| 101 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 38C | 5304510322 | Control Assembly, User Interface, W/housing |
|
$ 338.74 | |||||
| 4A | 242176404 | Trim, Facade, Grey |
|
$ 72.50 | |||||
| NI | 5304521767 | Harness, Wiring, Door |
|
$ 32.87 | |||||
| NI | 5303918744 | Kit, Dspnsr Heater, Dc |
|
$ 225.82 | |||||
| NI | 5304520997 | Cover, Connector, Door Heater, To Door Harness |
|
- | |||||
| NIA | 218976421 | Tube-water Inlet, Valve To Door |
|
$ 22.84 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 38.59 |
