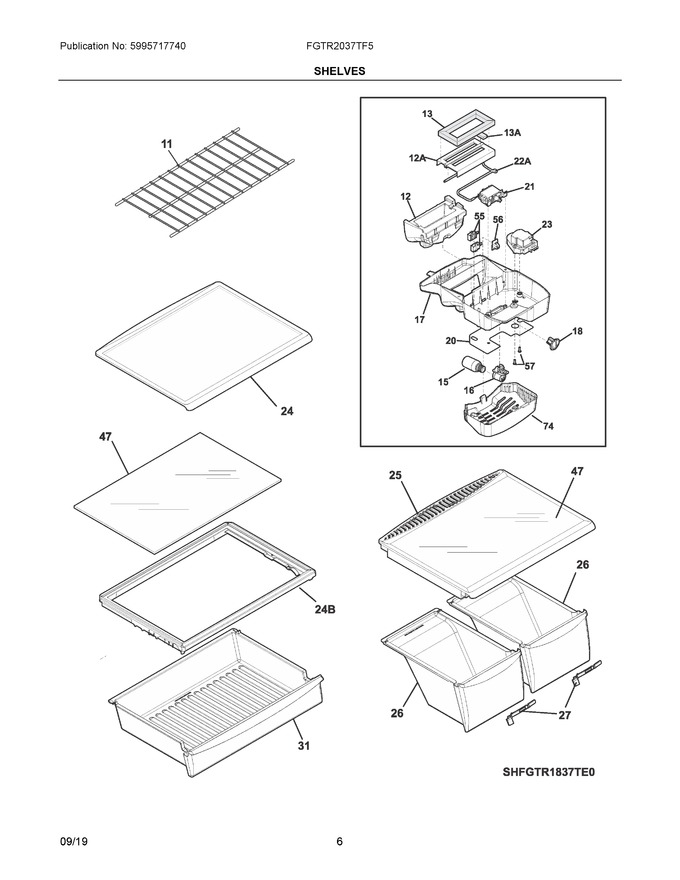

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358009		Shelf, Freezer, Full-width, Wire				$ 82.45
12	5304511163		Diffuser-air				$ 42.81
13	242240603		Gasket Seal				$ 87.71
15	5304517886		Light Bulb, Led   (Replaces: 5304498578)			Immediately	$ 81.18
16	240590403		Socket-light				$ 29.49
17	530451165		Control Box Housing		Appelez-nous	-
18	240360801		Knob, Temp Control				$ 43.95
20	5304511166		Heat Shield		Appelez-nous	-
21	241537107		Control Cold Foshan				$ 159.59
23	241705102		Timer-defrost			Immediately	$ 126.12
24	240358928		Shelf-"spill-safe", Sliding   (Replaces: 240358927)			Immediately	$ 193.73
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan, Crisper, (2), W/humid Cntl				$ 133.09
27	242215901		Slide, Humidity Contrl				$ 21.06
31	242322203		Meat Pan, Fw Pantry, W/slide Clips				$ 287.69
47	240350609		Insert-pan Cover, Glass				$ 180.33
55	530451167		Holder, Electronic Test		Appelez-nous	-
56	218515401		Clip, Grille/tube				$ 19.69
57	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 18.90
74	5304511168		Light Shield		Appelez-nous	-
12A	5304511164		Plate Diffuser		Appelez-nous	-
13A	240346703		Foam Tape   (Replaces: 240346712)				$ 2.53
22A	240468203		Sleeve-plastic				$ 87.63
24B	242205404		Cover, Deli Pan, Full Width				$ 128.92
NIA	240349801		Clip-slide, Pan				$ 22.75
NIA	5303299664		Spacer, Shelf				$ 26.78
NIA	240362101		Clip-slide, Cover				$ 52.25
NIBA	241872203		Support-beam				$ 59.83
