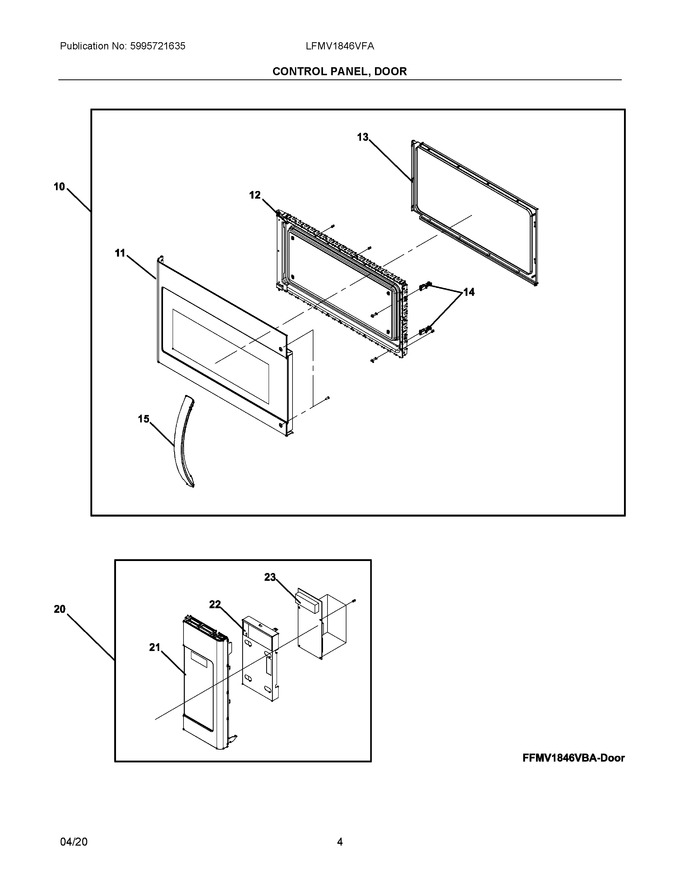

03 - Control Panel, Door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304523990 | Door Assembly, Complete, Stainless, Ez Care |
|
$ 460.05 | |||||
| 11 | 5304523991 | Door Assembly, Outer, Stainless, Ez Care |
|
- | |||||
| 12 | 5304523969 | Frame, Door, Black |
|
Immediately | $ 128.52 | ||||
| 13 | 5304523970 | Gasket, Door |
|
$ 86.00 | |||||
| 14 | 5304523249 | Latch, Door |
|
$ 9.74 | |||||
| 15 | 5304523992 | Handle, Door, Stainless |
|
$ 227.46 | |||||
| 20 | 5304523993 | Control Panel, Assembly, Ez Care, Stainless, Complete, W/pcb |
|
$ 637.19 | |||||
| 21 | 5304523994 | Control Panel, Outer, Ez Care, Stainless |
|
$ 204.42 | |||||
| 22 | 5304523973 | Shield, Pc Board |
|
$ 32.94 | |||||
| 23 | 5304523974 | Pc Board, Assembly, Control |
|
$ 428.14 |
