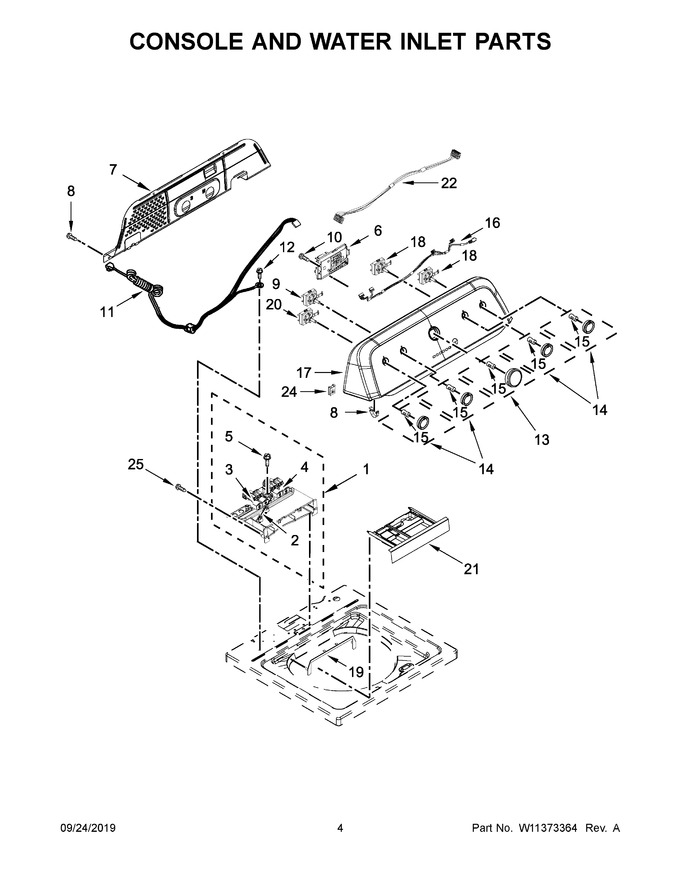

03 - Console And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11127357		Housing Assembly   (Replaces: W10921581)			Immediately	$ 378.85
2	W11315693		Harness, Valve   (Replaces: W10847170)				$ 174.90
3	W11168740		Valve, Cold Water Inlet   (Replaces: W10921514)			Immediately	$ 163.15
4	W11168743		Valve, Hot Water Inlet   (Replaces: W10921515)			Immediately	$ 112.07
5	W11685943		Screw   (Replaces: W10660565)				$ 14.97
6	W11654023		Control Unit Assembly, Machine And Motor   (Replaces: W11320239)			Immediately	$ 368.50
7	W10641337		Panel, Console Rear Cover				$ 216.62
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
9	W10858095		Switch, Rotary Encoder (5 Position)   (Replaces: W10584423)				$ 203.09
10	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
11	W11087430		Cord, Power   (Replaces: W10779058)				$ 148.22
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W11837899		Knob, Timer (grey)   (Replaces: W10558463)			Immediately	$ 18.83
14	W11837893		Knob, Control (grey)   (Replaces: W10562155)				$ 18.83
15	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
16	W11211519		Harness, Upper   (Replaces: W10694680)				$ 184.80
17	W11230941		Panel, Console   (Replaces: W10682735)				$ 510.22
18	W11197418		Switch, Rotary Encoder (2 Position)   (Replaces: W10584420)				$ 213.09
19	W11501416		Bezel, Dispenser   (Replaces: W10601843)				$ 31.05
20	W10584422		Switch, Rotary Encoder (4 Position)			Immediately	$ 202.80
21	W11127356		Drawer, Dispenser Assembly   (Replaces: W10919590)			Immediately	$ 91.06
22	W10786100		Harness, Jumper				$ 189.98
24	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
25	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.80
