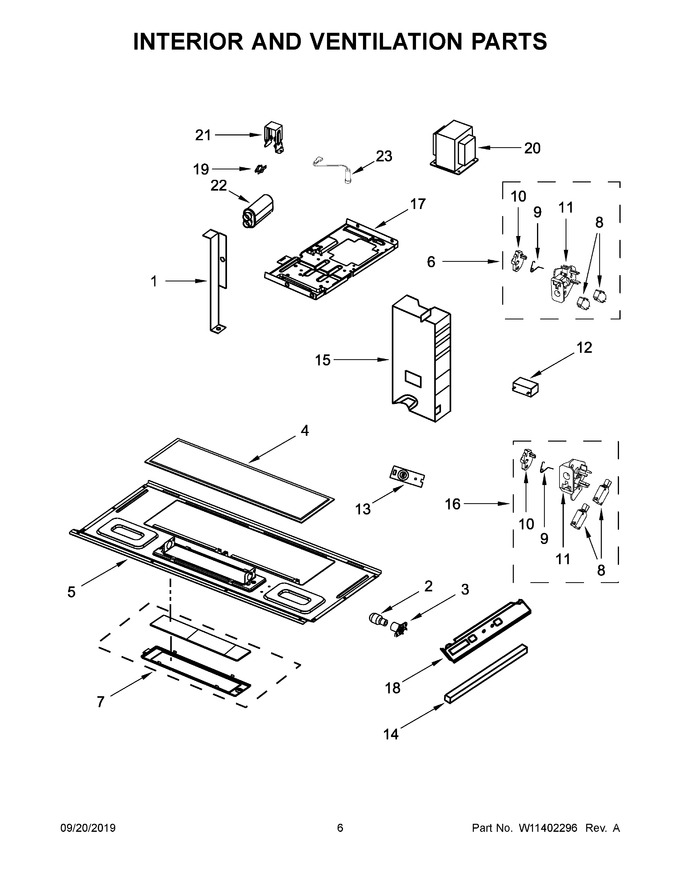

04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313275		Bracket, Top Cavity				$ 33.92
2	8206232A		Lamp, 40 Watt   (Replaces: 8206232)			Immediately	$ 7.34
3	W10210871		Holder, Lamp			Immediately	$ 6.39
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
5	W10245196		Plate, Bottom				$ 244.83
6	W11252186		Assembly, Upper Interlock (includes Switches)   (Replaces: W11219774)			Immediately	$ 23.45
7	W10240330		Assembly, Lamp Glass And Holder				$ 7.19
8	N/P		Switches, Interlock (not Serviced, Order Interlock Assemblies)		Appelez-nous	-
9	W10156812		Spring, Interlock			Immediately	$ 12.14
10	W10562613		Plate, Cam			Immediately	$ 17.83
11	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 22.37
12	W11405832		Capacitor, Hood Motor   (Replaces: W10605896)				$ 27.24
13	W10163422		Thermistor				$ 171.14
14	W10571179		Seal, Cooling		Appelez-nous	-
15	W11302941		Air Guide, Lower   (Replaces: W10771884)				$ 82.66
16	W11252187		Assembly, Lower Interlock (includes Switches)   (Replaces: W11219776)			Immediately	$ 36.38
17	W10827115		Chassis				$ 133.49
18	W10904020		Support, Ntc		Appelez-nous	-
19	W10269232		Thermostat, Cavity				$ 70.74
20	W10836753		Transformer, High Voltage   (Replaces: W10754523)			Immediately	$ 236.06
21	W10532063		Bracket, Capacitor				$ 28.28
22	8206562		Capacitor, High Voltage			Immediately	$ 120.92
23	W11256462		Diode, High Voltage   (Replaces: W10886077)			Immediately	$ 33.20
11A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07
