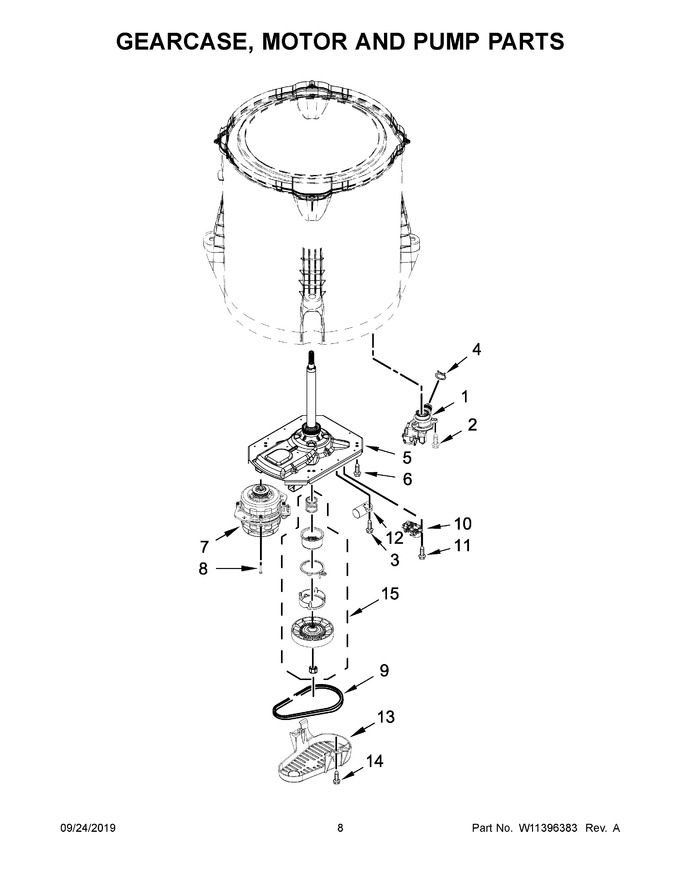

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11399437 | Pump Assembly, Drain (Replaces: W11259498) |
|
Immediately | $ 207.92 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 3 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.88 | |||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 5 | W11454734 | Gearcase Assembly (Replaces: W10870913) |
|
Immediately | $ 298.61 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.19 | ||||
| 7 | W11686050 | Motor, Drive (Replaces: W10677717) |
|
Immediately | $ 234.32 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.10 | |||||
| 9 | W11239857 | Belt, Drive (Replaces: W10808317) |
|
Immediately | $ 52.43 | ||||
| 10 | W10913953 | Actuator- Shift (Replaces: W10815026) |
|
Immediately | $ 69.79 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 13.55 | |||||
| 12 | W11428524 | Capacitor, Motor Run (Replaces: W10866238) |
|
Immediately | $ 92.05 | ||||
| 13 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 47.41 | ||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.82 | ||||
| 15 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 55.68 |
