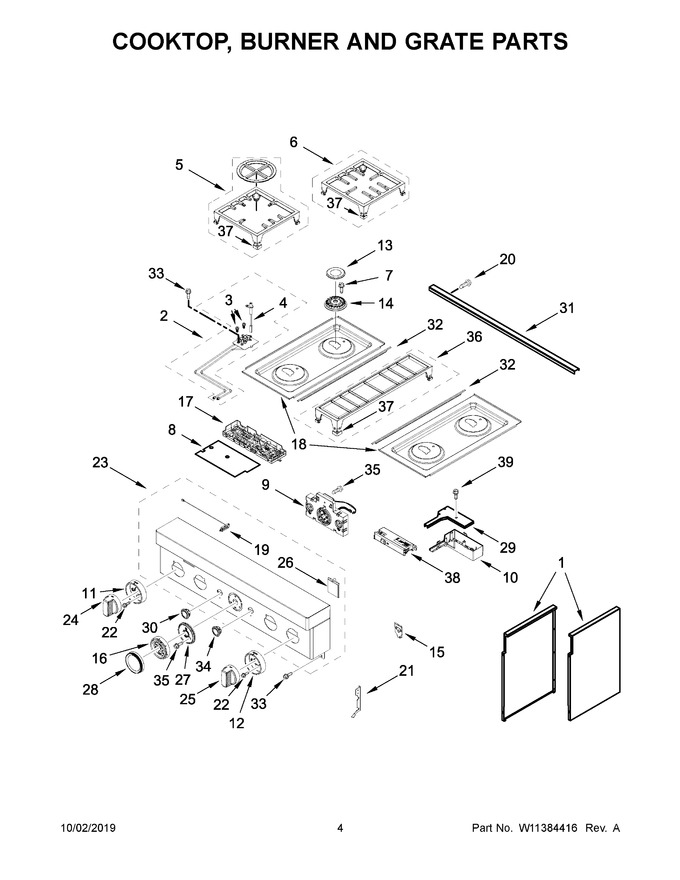

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11333179 | Panel, Cabinet Side (left) (Replaces: W11106881) |
|
$ 419.69 | |||||
| 2 | W11378584 | Assembly, Orifice Holder (left Front) (Replaces: W10892774) |
|
Immediately | $ 123.97 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (left Front, Right Front) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11573760 | Igniter (left Front, Right Front) (Replaces: W11238757) |
|
Immediately | $ 23.48 | ||||
| 5 | W11380124 | Burner, Grate (with Wok Ring) (Replaces: W11291183) |
|
Immediately | $ 200.19 | ||||
| 6 | W11380128 | Burner, Grate (Replaces: W11291179) |
|
Immediately | $ 183.04 | ||||
| 7 | W11643628 | Screw (8-18 X 1") (Replaces: W11323261) |
|
$ 14.75 | |||||
| 8 | W11320149 | Barrier, Appliance Manager (Replaces: W11281269) |
|
$ 130.57 | |||||
| 9 | W11380144 | Interface, User (Replaces: W11096037) |
|
Immediately | $ 560.42 | ||||
| 10 | W11320411 | Cover, Wifi Outer (Replaces: W11205795) |
|
- | |||||
| 11 | W11380145 | Bezel (rear Burners) (Replaces: W10883433) |
|
$ 65.07 | |||||
| 12 | W11380146 | Bezel (front Burners) (Replaces: W10881642) |
|
$ 65.07 | |||||
| 13 | W11380174 | Cap, Burner (black (set Of 4)) (Replaces: W11121389) |
|
Immediately | $ 139.20 | ||||
| 14 | W11344539 | Spreader, Flame (high) (left Front, Right Front) (Replaces: W10891746) |
|
Immediately | $ 141.16 | ||||
| 15 | W11318207 | Spring Clip, Range (Replaces: W11036559) |
|
$ 12.88 | |||||
| 16 | W11567541 | Knob, Oven Mode (stainless) (Replaces: W11249667) |
|
- | |||||
| 17 | W11380175 | Manager, Appliance (powermax) (Replaces: W11100279) |
|
Immediately | $ 470.41 | ||||
| 18 | W11344755 | Panel, Cooktop (black (left)) (Replaces: W11038235) |
|
$ 199.76 | |||||
| 19 | W11318855 | Antenna, Wifi (Replaces: W11130078) |
|
$ 228.92 | |||||
| 20 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 21 | W10130760 | Bracket, Moving Console (left) |
|
$ 75.94 | |||||
| 22 | W11674763 | Screw (Replaces: W10919387) |
|
$ 14.76 | |||||
| 23 | W11380181 | Panel, Console (Replaces: W10877949) |
|
$ 624.66 | |||||
| 24 | W11380561 | Knob, Single (stainless) (Replaces: W10912166) |
|
Immediately | $ 81.20 | ||||
| 25 | W11380562 | Knob, Dual (stainless) (Replaces: W10883172) |
|
$ 79.24 | |||||
| 26 | W10896366 | Assembly, Light Pipe |
|
$ 108.38 | |||||
| 27 | W11548484 | Bezel, Oven (stainless) (Replaces: W10913810) |
|
$ 61.19 | |||||
| 28 | W11548477 | Knob, Oven Temperature (stainless) (Replaces: W11249669) |
|
$ 149.89 | |||||
| 29 | W11320410 | Cover, Wifi Inner (Replaces: W11205794) |
|
- | |||||
| 30 | W11241511 | Button Assembly, Oven Light |
|
Immediately | $ 46.19 | ||||
| 31 | W11156414 | Trim, Island |
|
$ 260.38 | |||||
| 32 | W10271524 | Trim, T-strip (black) |
|
$ 212.34 | |||||
| 33 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 34 | W11241510 | Button Assembly, Oven Start |
|
Immediately | $ 48.76 | ||||
| 35 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 36 | W11380566 | Kit, Grate Filler (Replaces: W11291178) |
|
$ 257.46 | |||||
| 37 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 38 | W11234290 | Assembly, Wifi Module (Replaces: W11110768) |
|
$ 179.89 | |||||
| 39 | W10709795 | Screw (Replaces: 7101P624-60) |
|
$ 13.79 | |||||
| 14A | W11344742 | Spreader, Flame (low) (left Rear) (Replaces: W10891974) |
|
Immediately | $ 134.12 | ||||
| 14B | W11344746 | Spreader, Flame (aux) (right Rear) (Replaces: W10891978) |
|
Immediately | $ 133.20 | ||||
| 18A | W11380180 | Panel, Cooktop (black (right)) (Replaces: W11038245) |
|
$ 491.89 | |||||
| 1A | W11333303 | Panel, Cabinet Side (right) (Replaces: W11106880) |
|
$ 421.41 | |||||
| 21A | W10130759 | Bracket, Moving Console (right) |
|
$ 75.94 | |||||
| 2A | W11378585 | Assembly, Orifice Holder (left Rear) (Replaces: W10892484) |
|
$ 123.22 | |||||
| 2B | W11378586 | Assembly, Orifice Holder (right Front) (Replaces: W10892479) |
|
Immediately | $ 119.66 | ||||
| 2C | W11378587 | Assembly, Orifice Holder (right Rear) (Replaces: W10892735) |
|
$ 123.38 | |||||
| 3A | W11672510 | Orifice, Main (15k) (left Rear) (Replaces: W10892419) |
|
Immediately | $ 107.87 | ||||
| 3B | W11661909 | Orifice, Simmer (2.6k) (left Front, Right Front) (Replaces: W10892435) |
|
Immediately | $ 74.14 | ||||
| 3C | W10892438 | Orifice, Simmer (5k) (right Rear) |
|
$ 99.86 | |||||
| 4A | W11628654 | Igniter (left Rear) (Replaces: W10892340) |
|
Immediately | $ 54.92 | ||||
| 4B | W11114379 | Igniter (right Rear) |
|
Immediately | $ 66.44 | ||||
| 7A | W11678580 | Screw (8-18 X 1/2") (Replaces: W11323309) |
|
$ 14.78 |
