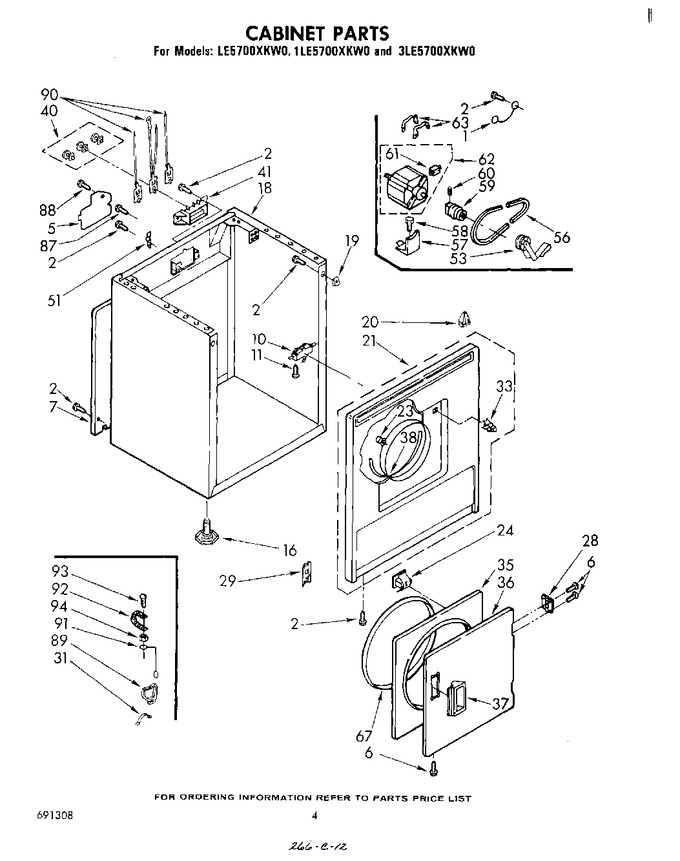

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	690236		Wire, Ground (motor)		Appelez-nous	-
2	WP308685		Screw, 10-16 X 1/2   (Replaces: 98518)			Immediately	$ 7.87
5	W11736322		Cover, Terminal Block   (Replaces: 690893)		Appelez-nous	-
6	689791		Screw		Appelez-nous	-
7	346368		Panel, Rear		Appelez-nous	-
10	W10820036		Switch, Door   (Replaces: 687428)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 690921)				$ 7.56
16	49621		Foot, Dryer (4)   (Replaces: 688222)			Immediately	$ 8.55
18	690848		Cabinet (almond)		Appelez-nous	-
18	690847		Cabinet (white)		Appelez-nous	-
18	690851		Cabinet (golden Harvest)		Appelez-nous	-
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 12.68
21	689294		Upper Front Panel Assembly (almond)		Appelez-nous	-
21	348390		Upper Front Panel Assembly (white)		Appelez-nous	-
21	689299		Upper Front Panel Assembly (golden Harvest)		Appelez-nous	-
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 20.65
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
28	WP348023		Hinge And Pin Assembly (2)   (Replaces: 348023)				$ 8.42
29	W10854425		Clip, Front Panel (2)   (Replaces: 237823)			Immediately	$ 15.56
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.09
33	279570		Strike, Door   (Replaces: 690082)			Immediately	$ 8.89
35	280077		Door, Rear (white)   (Replaces: 348201)				$ 197.58
35	280077		Door, Rear (golden Harvest)   (Replaces: 689277)				$ 197.58
35	280077		Door, Rear (almond)   (Replaces: 689274)				$ 197.58
36	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 147.39
36	689319		Door Front (golden Harvest)		Appelez-nous	-
36	689314		Door, Front (almond)		Appelez-nous	-
37	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 7.95
37	689584		Handle, Door (golden Harvest)		Appelez-nous	-
37	689306		Handle, Door (almond)		Appelez-nous	-
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
40	279393		Terminal Block Kit (for Terminal Block)			Immediately	$ 47.37
41	279320		Block, Terminal   (Replaces: 690261)			Immediately	$ 68.25
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
53	WP691366		Idler & Pulley Assembly   (Replaces: 688166)			Immediately	$ 22.47
56	341241		Belt, Drive			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 13.37
59	W11233559		Pulley, 60 Hz.   (Replaces: 685011)				$ 113.89
59	W11618508		Pulley, 50 Hz. (includes Illus. 60) (use W/model 3le5700xkw0)   (Replaces: 685064)				$ 348.11
60	690046		Set Screw		Appelez-nous	-
61	279827		Switch (use W/685815 Motor)   (Replaces: 337351)			Immediately	$ 191.95
61	279827		Switch ((use W/689788 Motor))   (Replaces: 349588)			Immediately	$ 191.95
62	W11618508		Motor Assembly (50 Hz.) (use W/model 3le5700xkw0)   (Replaces: 685815)				$ 348.11
62	279827		Motor Assembly (60 Hz. (alternate))   (Replaces: 689788)			Immediately	$ 191.95
62	279827		Motor Assembly (60 Hz. (alternate))   (Replaces: 690870)			Immediately	$ 191.95
63	WP660658		Clamp, Motor (alternate)   (Replaces: 685441)				$ 7.83
63	WP660658		Clamp, Motor (alternate)   (Replaces: 343481)				$ 7.83
67	W11613302		Seal, Door   (Replaces: 685763)				$ 53.63
87	WP681414		Screw, 10-32 X 1/2 (external Ground)   (Replaces: 690989)			Immediately	$ 7.85
88	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
89	688412		Clip, Retainer		Appelez-nous	-
90	279318		Terminal (brass)   (Replaces: 348913)			Immediately	$ 100.99
90	279318		Terminal (tinned)   (Replaces: 348912)			Immediately	$ 100.99
91	685449		Wire, Ground		Appelez-nous	-
92	22965		Strap, Ground		Appelez-nous	-
93	132848		Screw, 10-24 X 1		Appelez-nous	-
94	W10080180		Nut, 10-24   (Replaces: 120361)				$ 13.48
