SELECT A DIAGRAM

01 - Cover Sheet

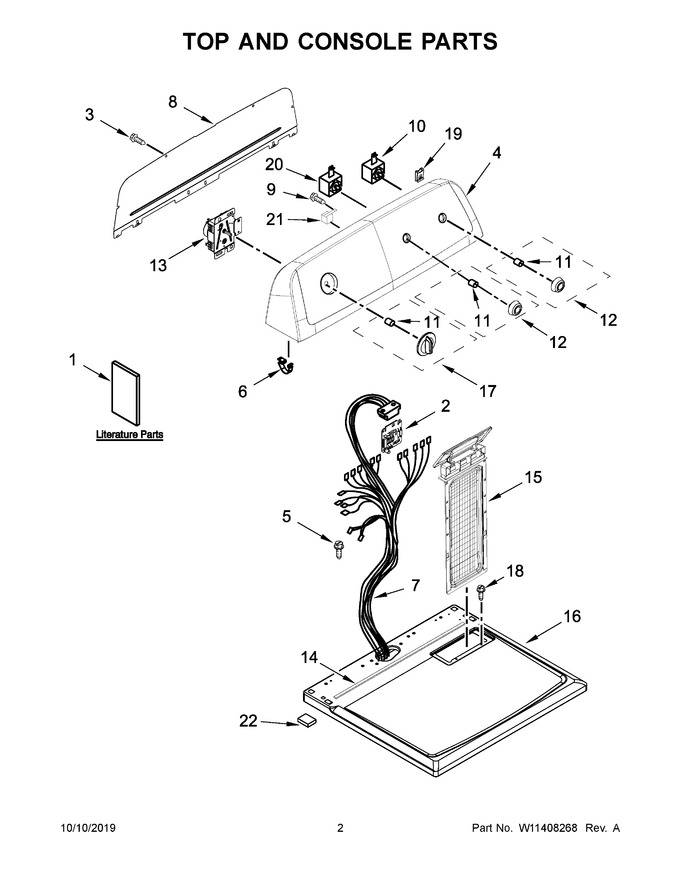

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11387406		Owners Manual		Appelez-nous	-
2	W11408456		Control Board, Dryer Timer   (Replaces: W11387733)		Appelez-nous	-
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	W10921745		Console (white)   (Replaces: W10804419)		Appelez-nous	-
5	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	W11352183		Main, Wire Harness		Appelez-nous	-
8	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 119.15
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
10	W11684611		Switch, Push To Start   (Replaces: W10804590)				$ 67.30
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 49.28
13	WPW10436303		Assembly, Timer   (Replaces: W10436303)			Immediately	$ 293.72
14	W10316616		Seal, Foam				$ 25.01
15	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 49.17
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 7.50
18	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
19	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
20	W11821373		Switch, Rotary Temperature   (Replaces: W10804592)		Appelez-nous	-
21	3952439		Buzzer, Mini		Appelez-nous	-
22	3389682		Spacer, Toe Panel				$ 8.31
1A	W11399547		Instructions, Installation		Appelez-nous	-
1B	W10916390		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
