SELECT A DIAGRAM

01 - Cover Sheet

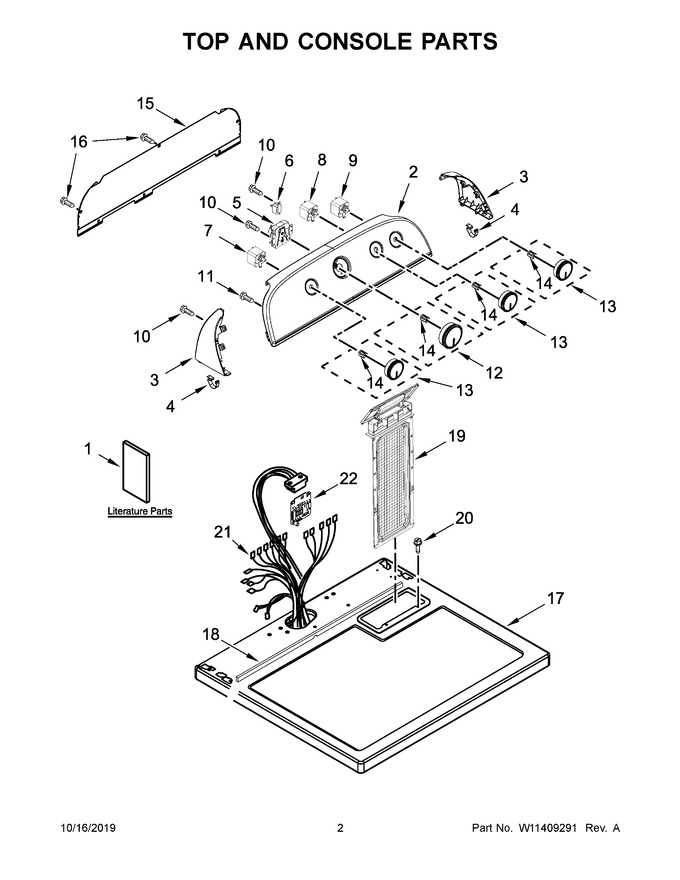

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11387406		Owners Manual		Appelez-nous	-
2	W11041460		Assembly, Console (white)   (Replaces: W10804423)		Appelez-nous	-
3	W10806901		End Cap (right) (white)		Appelez-nous	-
4	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
5	WPW10185982		Assembly, Timer (60 Hz.)   (Replaces: W10185982)			Immediately	$ 189.78
6	3952439		Buzzer, Mini		Appelez-nous	-
7	W10168170		Switch, Temperature				$ 206.68
8	W11041435		Switch, Rotary (2 Pos)   (Replaces: W10832701)		Appelez-nous	-
9	W11041434		Switch, Push To Start   (Replaces: W10804591)				$ 117.30
10	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
11	W10850756		Screw   (Replaces: W10773242)				$ 8.20
12	W11501455		Assembly, Timer Knob (white/metallic)   (Replaces: W10576634)				$ 45.78
13	W10576636		Assembly, Control Knob (white/metallic)		Appelez-nous	-
14	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
15	W10556829		Panel, Rear (console)				$ 285.82
16	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
17	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
18	W10316616		Seal, Foam				$ 27.79
19	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 54.63
20	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
21	W11352185		Wire Harness, Main		Appelez-nous	-
22	W11408456		Control Board, Dryer Timer   (Replaces: W11387733)		Appelez-nous	-
1A	W11399547		Instructions, Installation		Appelez-nous	-
1B	W11366266		Wiring Diagram		Appelez-nous	-
3A	W10806902		End Cap (left) (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
