01 - Cover Sheet

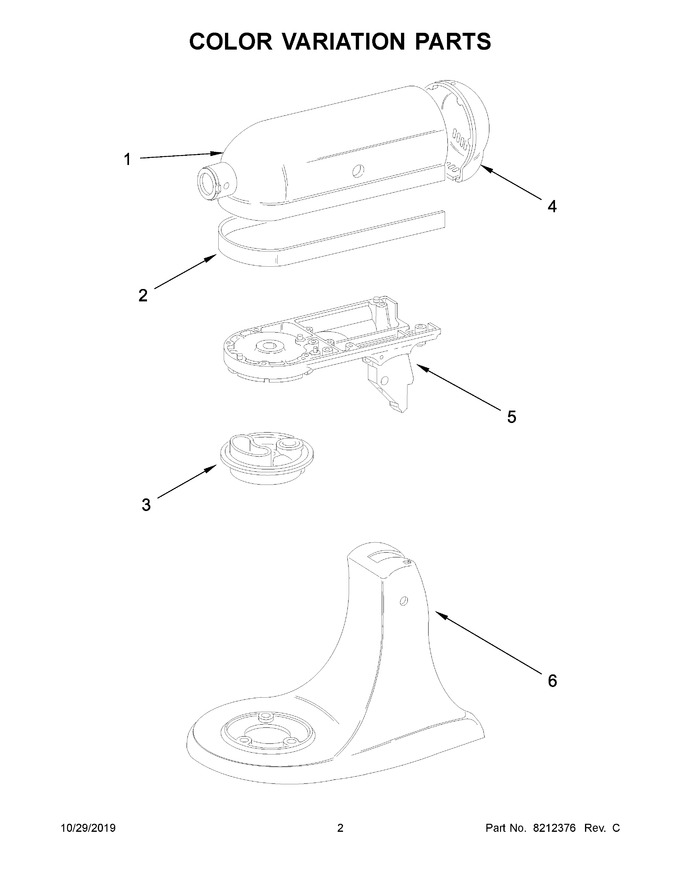

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11672793 | Motor Housing (white) (Replaces: 240291-1) |
|
$ 113.22 | |||||
| 2 | W11092112 | Trim Band (black) |
|
- | |||||
| 3 | WP240286-1 | Planetary (white) (Replaces: 240286-1) |
|
Immediately | $ 25.99 | ||||
| 4 | WP240253-1 | End Cover (white) (Replaces: 240253-1) |
|
$ 21.47 | |||||
| 5 | W10861717 | Lower Gearcase (white) (Replaces: 240350-4) |
|
$ 113.05 | |||||
| 6 | WP3184273 | Pedestal & Foot (white) (Replaces: 3184273) |
|
$ 111.28 | |||||
| 1A | WP240291-13 | Motor Housing (onyx Black) (Replaces: 240291-13) |
|
$ 101.67 | |||||
| 1B | W11170228 | Motor Housing (matte White) (Replaces: W10885723) |
|
- | |||||
| 1C | W11170225 | Motor Housing (black Matte) (Replaces: W10885700) |
|
- | |||||
| 1D | W10349279 | Motor Housing (silver) |
|
$ 105.44 | |||||
| 3A | W11199173 | Planetary (onyx Black) (Replaces: 240286-16) |
|
$ 32.71 | |||||
| 3B | W11170308 | Planetary (matte White) (Replaces: W10885730) |
|
- | |||||
| 3C | W11170306 | Planetary (black Matte) (Replaces: W10885706) |
|
$ 26.56 | |||||
| 3D | W10349281 | Planetary (silver) |
|
- | |||||
| 4A | 240253-14 | End Cover (onyx Black) |
|
$ 48.42 | |||||
| 4B | W11170248 | End Cover (matte White) (Replaces: W10885728) |
|
- | |||||
| 4C | W11170239 | End Cover (black Matte) (Replaces: W10885707) |
|
- | |||||
| 4D | W10348293 | End Cover (silver) |
|
- | |||||
| 5A | WP240350-56 | Lower Gearcase (onyx Black) (Replaces: 240350-56) |
|
$ 108.70 | |||||
| 5B | W11170236 | Lower Gearcase (matte White) (Replaces: W10885718) |
|
- | |||||
| 5C | W11170233 | Lower Gearcase (black Matte) (Replaces: W10885699) |
|
- | |||||
| 5D | W10349276 | Lower Gearcase (silver) |
|
- | |||||
| 6A | W11205080 | Pedestal & Foot (onyx Black) (Replaces: 3184275) |
|
- | |||||
| 6B | W11135052 | Pedestal & Foot (matte White) |
|
- | |||||
| 6C | W11185575 | Pedestal & Foot (black Matte) |
|
- | |||||
| 6D | W11257682 | Pedestal & Foot (silver) |
|
- |
