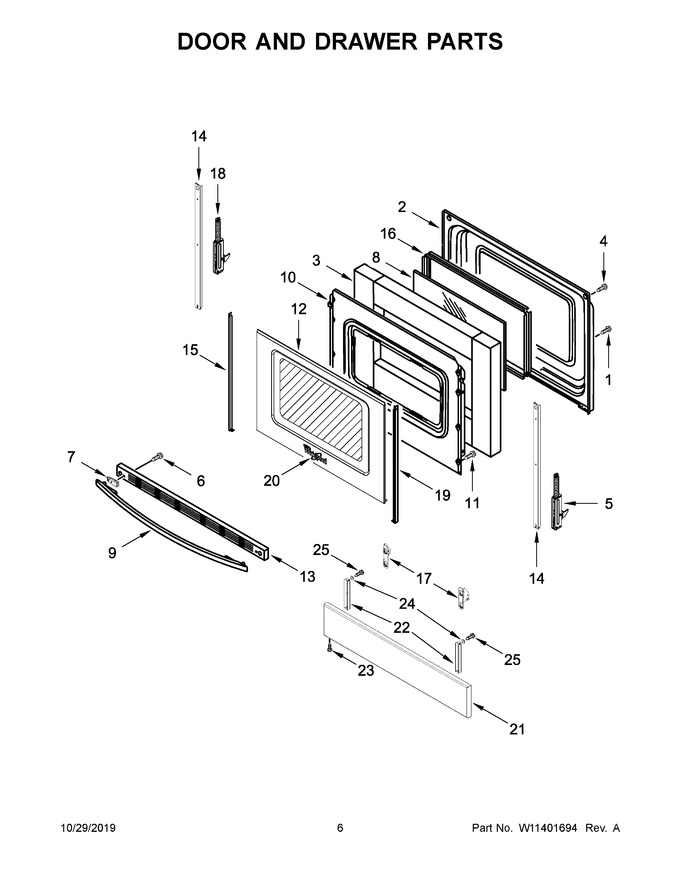

04 - Door And Drawer Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 4 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 5 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 6 | W10896982 | Screw (Replaces: W10465158) |
|
$ 8.40 | |||||
| 7 | WPW10410341 | Standoff, Handle (black) (Replaces: W10410341) |
|
$ 80.75 | |||||
| 8 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 232.06 | |||||
| 9 | WPW10618239 | Handle, Oven Door (stainless) (Replaces: W10618239) |
|
Immediately | $ 190.89 | ||||
| 10 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 233.31 | |||||
| 11 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 12 | W11219379 | Glass Assembly, Outer Door (stainless) (Replaces: W11169624) |
|
$ 452.91 | |||||
| 13 | WPW10310922 | Trim, Oven Door Vent (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 14 | W11502236 | Door Strap (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 15 | W10761018 | Trim, Door (black (left)) (Replaces: W10746436) |
|
Immediately | $ 54.80 | ||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 17 | W11096901 | Mounting Bracket, Toe Panel (left) |
|
- | |||||
| 18 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 19 | W10761014 | Trim, Door (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 | ||||
| 20 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 21 | W11200111 | Panel, Toe (stainless) (Replaces: W11037794) |
|
- | |||||
| 22 | W11039147 | Bracket, Toe Panel |
|
- | |||||
| 23 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 24 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) |
|
$ 8.25 | |||||
| 25 | W11739957 | Screw (Replaces: W10673879) |
|
- | |||||
| 17A | W11096902 | Mounting Bracket, Toe Panel (right) |
|
- |
