SELECT A DIAGRAM

01 - Cover Sheet

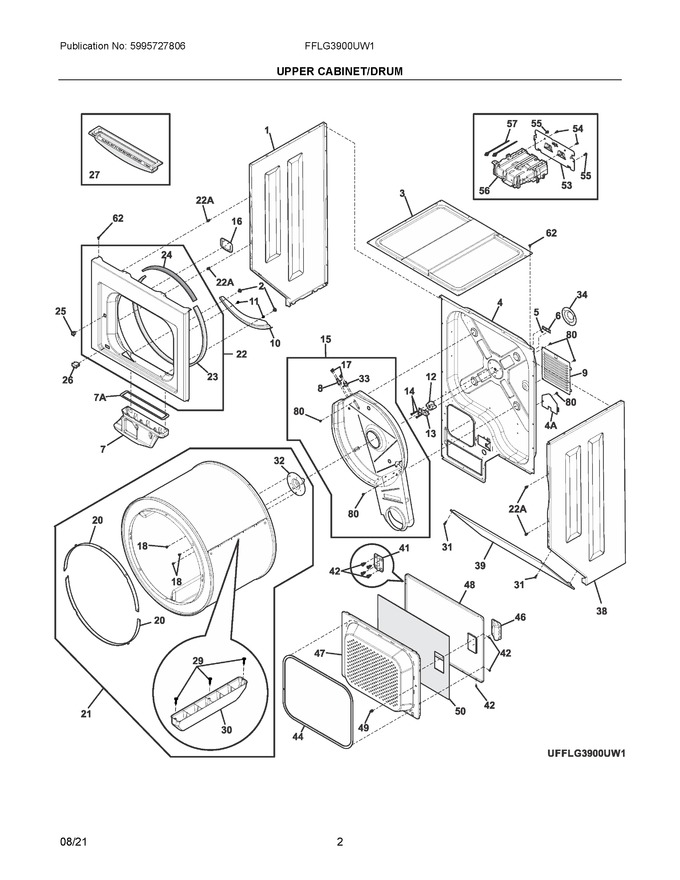

02 - Upper Cabinet/drum


03 - Motor/blower/belt/burner


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137510410		Panel, Left Side, White				$ 257.36
2	131362400		Fastener, Push-in				$ 10.45
3	131883301		Panel, Top				$ 307.76
4	5304500431		Panel, Rear, Lc Dryer				$ 324.50
5	5303281019		Ball, Grounding				$ 18.11
6	5303281020		Clip, Ball, Steel, Flat Nut				$ 18.90
7	5304521121		Duct, Air				$ 131.73
8	137032600		Limiter, Thermal, Heater			Immediately	$ 24.44
9	5303309490		Panel, Motor Access		Appelez-nous	-
10	137539100		Shield, Air Duct				$ 51.98
11	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
12	131825900		Bearing, Drum Support			Immediately	$ 12.19
13	131724301		Bracket, Bearing Support			Immediately	$ 28.51
14	131205400		Screw, Bracket Mtg., 10-16b X 1.375, Cr/sq Drive				$ 14.18
15	137470800		Heater Housing, W/duct		Appelez-nous	-
16	137576600		Plug, Light Hole			Immediately	$ 15.75
17	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.73
18	5304502598		Screw, Thread Cutting, #10-32 X .75			Immediately	$ 10.45
20	137513300		Glide, Flat, Dryer			Immediately	$ 40.75
21	5304517316		Drum Assembly, Dryer, W/glides-vanes				$ 399.22
22	5304517315		Panel, Front Weld, White, W/felt Seals				$ 269.03
23	5303937183		Seal, Felt, Lower   (Replaces: 134134700)			Immediately	$ 39.86
24	5303937182		Seal, Felt, Upper   (Replaces: 134036400)			Immediately	$ 36.16
25	131658800		Door Catch, Upper			Immediately	$ 75.98
26	134813663		Switch, Door, White			Immediately	$ 67.53
27	5304516871		Lint Filter, Trap			Immediately	$ 46.67
29	131382300		Screw, Quadrex Head, 10-14 X 1.00, Vane Mtg., Special			Immediately	$ 14.96
30	5304515811		Vane, Dryer, White			Immediately	$ 31.33
31	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
32	131777700		Shaft, Drum Support, Ballhitch   (Replaces: 137088600)			Immediately	$ 79.85
33	5304406099		Thermostat, Safety			Immediately	$ 133.98
34	5304506372		Cover Plate, Bearing				$ 59.73
38	137510510		Panel, Right Side, White				$ 258.98
39	137546910		Panel, Access				$ 204.65
41	134222900		Hinge, Dryer Door				$ 25.20
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Quad Drive			Immediately	$ 16.54
44	137551901		Gasket, Door			Immediately	$ 45.56
46	131789400		Handle, Door, White			Immediately	$ 70.88
47	137365110		Panel, Inner Door, White				$ 255.15
48	137408403		Panel, Outer Door, White			Immediately	$ 215.78
49	5303207102		Strike, Door			Immediately	$ 22.05
50	134535300		Insulator, Heat Shield, Outer Door				$ 66.94
53	5304515761		Cover, Main Board, External				$ 53.77
54	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
55	137511100		Screw, Hex Head, 10-24 X 0.500, Type F				$ 13.39
56	5304517322		Board, Main Control, Ewd18, W/housing		Appelez-nous	-
57	5304515894		Clip, Fir Tree Style				$ 19.28
62	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 29.53
80	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
22A	137362600		Pin, Panel Locator				$ 39.38
4A	137389801		Cover, Terminal Block		Appelez-nous	-
7A	131295200		Seal, Air Duct				$ 18.11
NI	134154100		Screw, Hex Washer Head, 10-32 X 0.375, Ground				$ 14.96
NI	137360824		Protector, Edge		Appelez-nous	-
NIA	5304505258		Harness, Wiring, Door Switch				$ 49.32
NIA	5304521438		Wiring Harness, Main, Dryer		Appelez-nous	-
NIB	5304520338		Wiring Harness, Main, Washer			Immediately	$ 128.52
NIC	5304520336		Wiring Harness, Washgroup, Lower			Immediately	$ 162.26

    View Diagram in Separate Window       Print Part List
