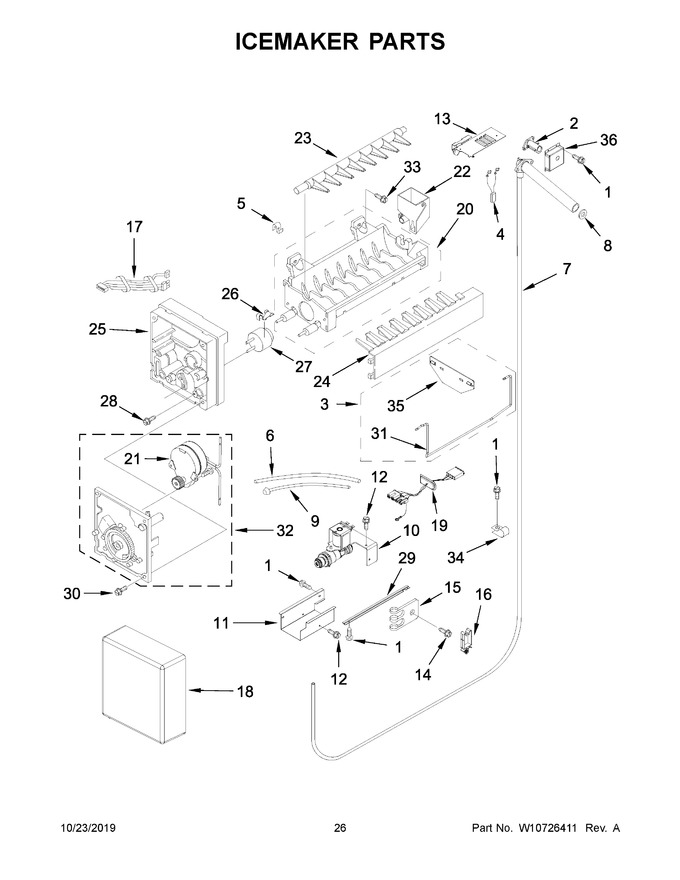

14 - Icemaker Parts


15 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11624204		Screw   (Replaces: 486194)				$ 14.72
2	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 206.58
3	W11807379		Assembly, Shut Off Arm   (Replaces: W11128135)			Immediately	$ 63.21
4	W10482373		Assembly, Fill Tube Heater Wire				$ 125.10
5	WP628379		Clip, Thermal Fuse   (Replaces: 628379)				$ 11.10
6	W11565275		Tube, Filter Inlet   (Replaces: W10296807)				$ 67.89
7	W11662302		Assembly, Water Inlet Tube   (Replaces: 2314049)		Appelez-nous	-
8	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
9	W11533506		Tube, Filter Outlet   (Replaces: W10683737)			Immediately	$ 33.15
10	WP2307650		Valve, Solenoid   (Replaces: 2307650)			Immediately	$ 203.52
11	W10129653		Shield, Valve Electrical		Appelez-nous	-
12	00487294		Screw   (Replaces: 487294)				$ 175.09
13	WP2221231		Shield, Heat   (Replaces: 2221231)				$ 89.33
14	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
15	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 11.92
16	W10129069		Clip, Wire		Appelez-nous	-
17	W10508673		Assembly, Ice Maker Wire				$ 123.63
18	WPW10289690		Cover, Icemaker   (Replaces: W10289690)			Immediately	$ 8.82
19	W10279393		Assembly, Water Valve Wire				$ 157.07
20	WPW10190929		Assembly, Mold And Heater (also Order 542638)   (Replaces: 628228)				$ 233.15
21	N/P		Motor (not Available, Order #32)		Appelez-nous	-
22	W11676540		Cup, Water Fill   (Replaces: W10435665)				$ 22.65
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	W10788834		Stripper, Ice   (Replaces: W10699925)				$ 85.24
25	W11236451		Support, Housing		Appelez-nous	-
26	WP2315522		Retainer, Thermostat   (Replaces: 2315522)				$ 11.60
27	WP627985		Thermostat   (Replaces: W10290336)				$ 114.64
28	W10001280		Screw		Appelez-nous	-
29	2320559		Support, Valve				$ 88.79
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	W11251736		Arm, Shut Off   (Replaces: W11173300)				$ 76.56
32	8201515		Assembly, Module And Motor   (Replaces: 626691)			Immediately	$ 141.64
33	WP488163		Screw   (Replaces: 488208)				$ 7.92
34	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
35	W11215550		Extension, Shut Off Arm   (Replaces: W11112558)			Immediately	$ 45.14
36	W10176577		Cover, Fill Tube Heater		Appelez-nous	-
100	W11082613		Assembly, Icemaker   (Replaces: W10321136)				$ 274.93
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10489178		Template, Grill (wood Panel)				$ 44.05
NI	W10234156		Installation Block				$ 16.77
NI	W10355016		Cleaner, Stainless Steel		Appelez-nous	-
NI	W10355049		Wipes, Stainless Steel Cleaning				$ 7.91
NI	W11175806		Install Kit   (Replaces: W10553982)				$ 279.62
NI	W11682972		Template, Door (wood Panel)   (Replaces: W10488113)				$ 355.69
