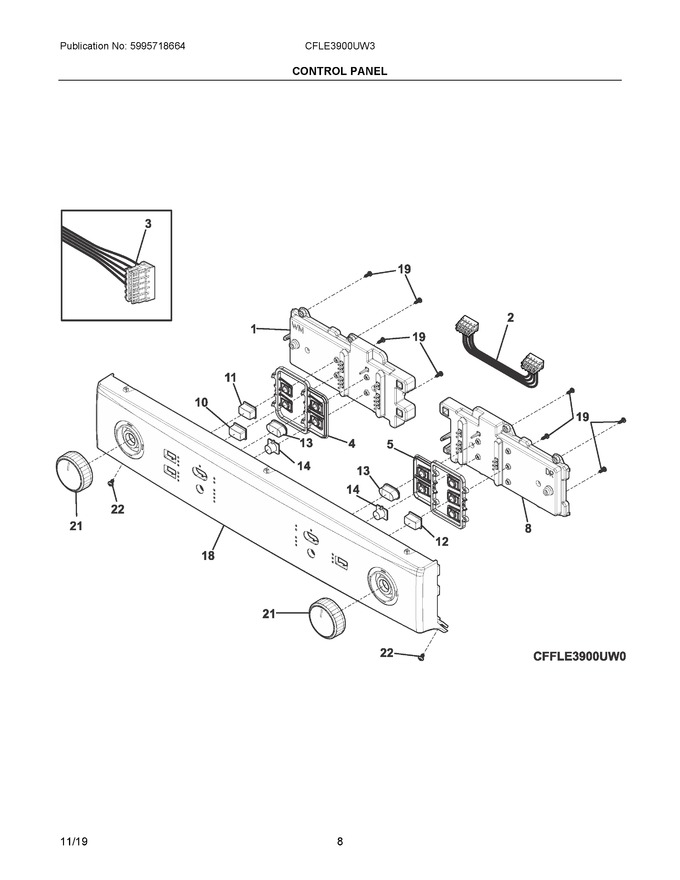

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304523182		Board Assembly, User Interface, Washer, W/housing			Immediately	$ 274.75
2	5304520297		Wiring Harness, User Interface				$ 36.90
3	5304523159		Wiring Harness, Main, Dryer				$ 209.33
4	5304515821		Support, Buttons, Washer				$ 26.51
5	5304515822		Support, Buttons, Dryer				$ 24.10
8	5304523183		Board Assembly, User Interface, Dryer, W/housing			Immediately	$ 270.70
10	5304524439		Button, Water Level, White   (Replaces: 5304515789)				$ 39.36
11	5304515785		Button, Wash Temp, White				$ 21.26
12	5304515793		Button, Dry Temp, White				$ 21.26
13	5304515795		Button, Start/pause, White				$ 18.48
14	5304515797		Button, Cancel, White		Appelez-nous	-
18	5304515801		Console, Decorated, White				$ 195.67
19	5304505441		Screw, Pph B, 6-20x.375				$ 7.23
21	5304515769		Knob Assembly, Cycle Selector, White				$ 48.20
22	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
