SELECT A DIAGRAM

01 - Cover Sheet

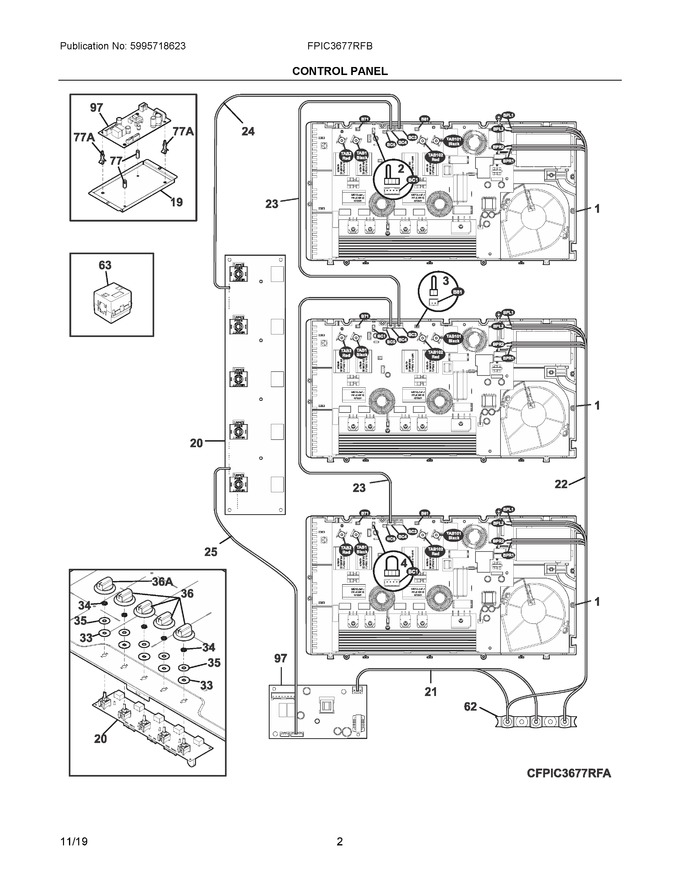

02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	357266088		Generator, Circuit Board, Induction, 2 Zone   (Replaces: 357266097)			Immediately	$ 563.08
2	5304506068		Wire, Jumper, Lh Generator, Bc1			Immediately	$ 10.23
3	387540300		Bridging Plug, Dummy Ntc, B81, Center Gen.				$ 4.27
4	318578302		Wire, Jumper, Generator, Bc1				$ 20.48
19	5304506069		Box, Protection, Smps1				$ 12.97
20	808844002		Board Assembly, User Interface, Proteus   (Replaces: 808844001)			Immediately	$ 722.93
21	5304506070		Harness, Wiring, Power Board, To Term. Block				$ 20.73
22	5304522492		Harness, Wiring, Main   (Replaces: 5304506098)			Immediately	$ 116.29
23	318578332		Harness, Wiring, Communication			Immediately	$ 60.39
24	5304506103		Harness, Wiring, Ui Board, To Lh Zone				$ 16.40
25	5304506102		Harness, Wiring, Ui Board, To Power Board				$ 24.16
33	318146012		Bushing, Control, (4)				$ 17.33
34	316247700		Nut, Mounting				$ 20.22
35	318086007		Washer, Flat, (4), Control				$ 11.03
36	5304506074		Knob, Control, Single				$ 100.28
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 29.66
63	5304506076		Filter, Ferrite Choke			Immediately	$ 46.68
77	316247900		Spacer, Power Board				$ 49.61
97	808844401		Board Assembly, Power			Immediately	$ 299.96
36A	5304506075		Knob, Control, Dual				$ 97.74
77A	316114100		Spacer				$ 67.73
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.73
NI	5304506104		Box & Wires Assy		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.58
NI	305309704		Screw, St, 4.2 : 12, (9)		Appelez-nous	-
NIA	305309608		Screw, M4		Appelez-nous	-
NIA	305376201		Nut, Terminal Block, (2)		Appelez-nous	-
NIB	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
