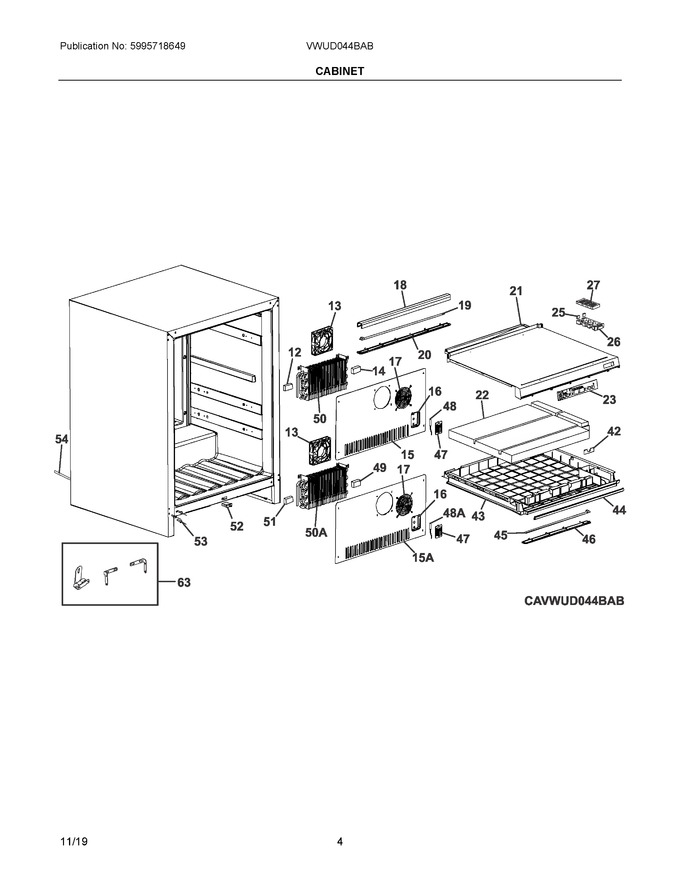

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304523222		Block, Evaporator, Foam, Lh Upper		Appelez-nous	-
13	5304522370		Fan Assembly, Evaporator				$ 107.02
14	5304523223		Block, Evaporator, Foam, Rh Upper		Appelez-nous	-
15	5304523224		Cover, Evaporator, Upper, Air Duct		Appelez-nous	-
16	5304522379		Housing, Sensor, Metal		Appelez-nous	-
17	5304523226		Cover, Evaporator Fan, Wire		Appelez-nous	-
18	5304523227		Housing, Led Light, Top		Appelez-nous	-
19	5304522373		Light Board, Led		Appelez-nous	-
20	5304522374		Cover, Led Light		Appelez-nous	-
21	5304523361		Mullion Assembly, Control Panel, W/overlay				$ 171.05
22	5304523228		Insulation, Foam, Mullion		Appelez-nous	-
23	5304523229		Pc Board, Display/ui				$ 346.94
25	5304523204		Magnet, Filter Box		Appelez-nous	-
26	5304523230		Housing, Air Filter		Appelez-nous	-
27	PAULTRA2		Air Filter, Wine Cabinet, Vintec   (Replaces: VCPAULTRA2)			Immediately	$ 27.73
42	5304523199		Plate, Magnet		Appelez-nous	-
43	5304523232		Mullion Housing, Lower		Appelez-nous	-
44	5304523233		Mullion Gasket, Door Isolation		Appelez-nous	-
45	5304523234		Light Board, Led, Mullion		Appelez-nous	-
46	5304523201		Cover, Led Light, Top/mullion		Appelez-nous	-
47	5304522377		Cover, Sensor		Appelez-nous	-
48	5304523235		Sensor, Upper		Appelez-nous	-
49	5304523236		Block, Evaporator, Foam, Rh Lower		Appelez-nous	-
50	5304523237		Evaporator, Assembly, Upper				$ 137.03
51	5304523239		Block, Evaporator, Foam, Lh Lower		Appelez-nous	-
52	5304522384		Switch, Door				$ 19.38
53	5304522385		Button Plug, Black		Appelez-nous	-
54	5304522386		Tube, Suction		Appelez-nous	-
63	5304522674		Anti Tip Kit, Complete		Appelez-nous	-
15A	5304523225		Cover, Evaporator, Lower, Air Duct		Appelez-nous	-
48A	5304522670		Sensor Assembly, W/clamp-holder				$ 30.33
50A	5304523238		Evaporator, Assembly, Lower				$ 148.84
