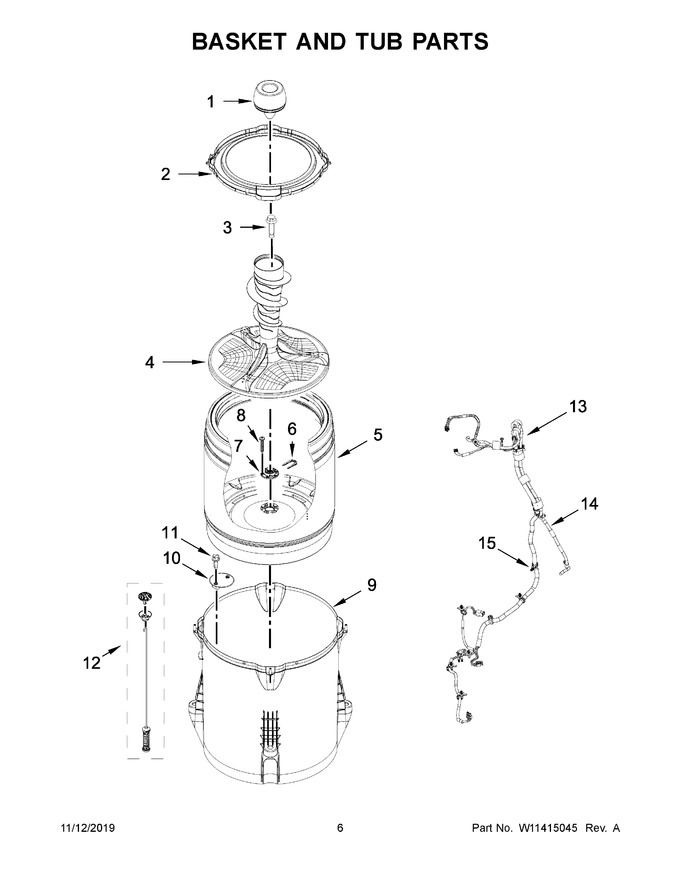

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11205050 | Dispenser, Fabric Softener (Replaces: W10863013) |
|
Immediately | $ 76.49 | ||||
| 2 | W10849477 | Tub Ring (Replaces: W10578859) |
|
$ 185.41 | |||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 8.13 | ||||
| 4 | W11550891 | Agitator (complete) (Replaces: W10821990) |
|
Immediately | $ 113.87 | ||||
| 5 | W10752719 | Basket Assembly (Replaces: W10586077) |
|
Immediately | $ 419.35 | ||||
| 6 | W11385424 | Retainer, Drive Block (Replaces: W11284133) |
|
Immediately | $ 12.35 | ||||
| 7 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 44.23 | ||||
| 8 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 7.19 | ||||
| 9 | W11219115 | Tub |
|
$ 368.66 | |||||
| 10 | W11568797 | Filter, Drain Pump (Replaces: W11089264) |
|
Immediately | $ 26.79 | ||||
| 11 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 12 | W11130362 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11228718) |
|
Immediately | $ 138.31 | ||||
| 13 | W11545744 | Harness, Lower (Replaces: W11255099) |
|
Immediately | $ 154.70 | ||||
| 14 | WP353244 | Hose, Pressure Switch (Replaces: W10236981) |
|
Immediately | $ 59.93 | ||||
| 15 | W10339680 | Cable Tie |
|
- |
