01 - Cover Sheet

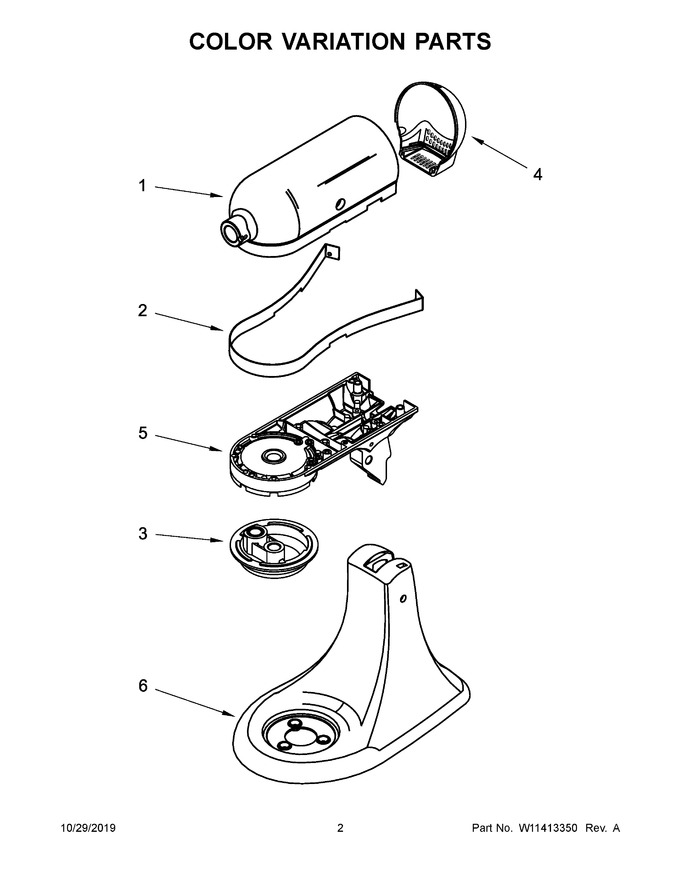

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10334291 | Motor Housing (slate/dark Pewter) |
|
- | |||||
| 2 | W11230105 | Trim Band (black/frost) (Replaces: W10431041) |
|
- | |||||
| 3 | W10334282 | Planetary (slate/dark Pewter) |
|
- | |||||
| 4 | W10334280 | End Cover (slate/dark Pewter) |
|
- | |||||
| 5 | W10334294 | Lower Gearcase (slate/dark Pewter) |
|
- | |||||
| 6 | W11356014 | Pedestal W/feet (slate/dark Pewter) |
|
- |
