01 - Cover Sheet

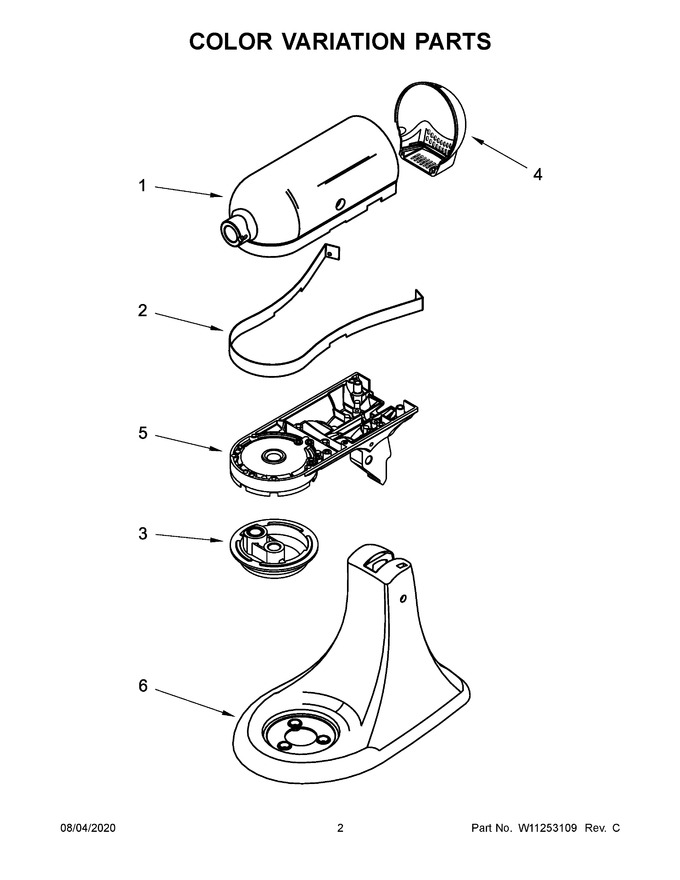

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10350463 | Motor Housing (contour Silver) |
|
- | |||||
| 2 | W11230105 | Trim Band (black/frost) (Replaces: W10431041) |
|
- | |||||
| 3 | W10350465 | Planetary (contour Silver) |
|
- | |||||
| 4 | W10350456 | End Cover (contour Silver) |
|
$ 43.04 | |||||
| 5 | W10350459 | Lower Gearcase (contour Silver) |
|
- | |||||
| 6 | W10482478 | Pedestal W/feet (contour Silver) |
|
- | |||||
| 1A | W10334291 | Motor Housing (slate/dark Pewter) |
|
- | |||||
| 1B | 9704025 | Motor Housing (metallic Chrome) |
|
$ 108.56 | |||||
| 1C | W10572197 | Motor Housing (grenadine) |
|
- | |||||
| 3A | W10334282 | Planetary (slate/dark Pewter) |
|
- | |||||
| 3B | 9706670 | Planetary (metallic Chrome) |
|
Immediately | $ 45.31 | ||||
| 3C | W10572189 | Planetary (grenadine) |
|
- | |||||
| 4A | W10334280 | End Cover (slate/dark Pewter) |
|
- | |||||
| 4B | 9704029 | End Cover (metallic Chrome) |
|
- | |||||
| 4C | W10572184 | End Cover (grenadine) |
|
- | |||||
| 5A | W10334294 | Lower Gearcase (slate/dark Pewter) |
|
- | |||||
| 5B | 9706662 | Lower Gearcase (slate/dark Pewter) (Replaces: 9707219) |
|
$ 68.93 | |||||
| 5C | W10572193 | Lower Gearcase (grenadine) |
|
- | |||||
| 6A | W11356014 | Pedestal W/feet (slate/dark Pewter) |
|
- | |||||
| 6B | 9707188 | Pedestal W/feet (metallic Chrome) |
|
- | |||||
| 6C | W11257678 | Pedestal W/feet (grenadine) |
|
- |
