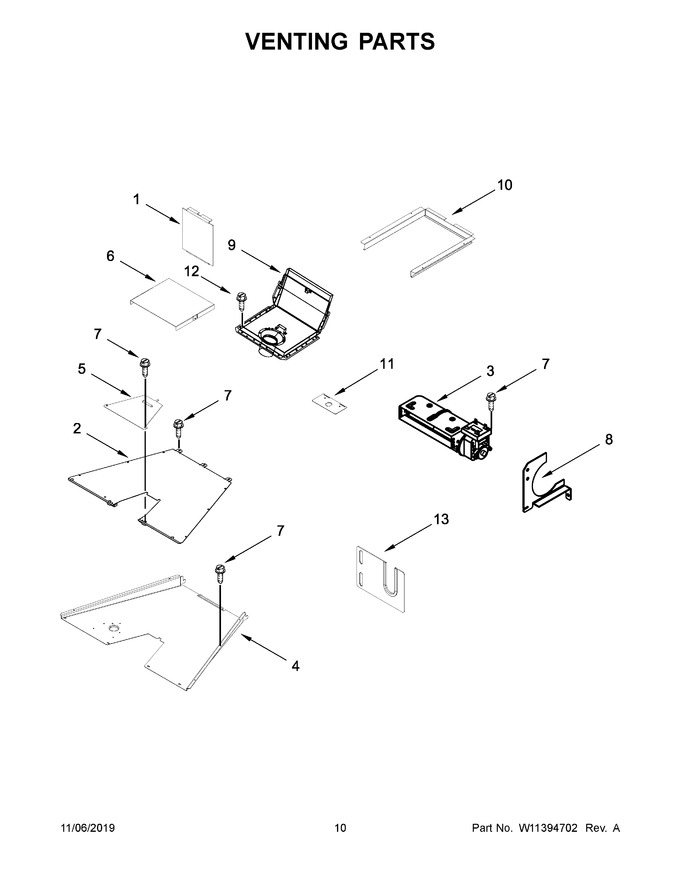

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10246087 | Insulation, Chimney |
|
- | |||||
| 2 | W11105221 | Vent, Cooling Top (30") |
|
- | |||||
| 3 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 241.54 | ||||
| 4 | W11091676 | Vent, Cooling Bottom (30") |
|
- | |||||
| 5 | W11320405 | Plate, Cooling Latch (Replaces: W11109518) |
|
- | |||||
| 6 | W10246086 | Retainer, Insulation |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 8 | W11047754 | Bracket, Blower Mount |
|
- | |||||
| 9 | W10340579 | Vent, Chimney Box (30" / 36") |
|
- | |||||
| 10 | W10145363 | Duct, Primary Air (30") |
|
- | |||||
| 11 | W10115855 | Holder, Strain Relief |
|
- | |||||
| 12 | WP3400805 | Screw (zinc) (Replaces: 3400805) |
|
$ 7.55 | |||||
| 13 | W11320407 | Cover, Channel (Replaces: W11106956) |
|
- |
