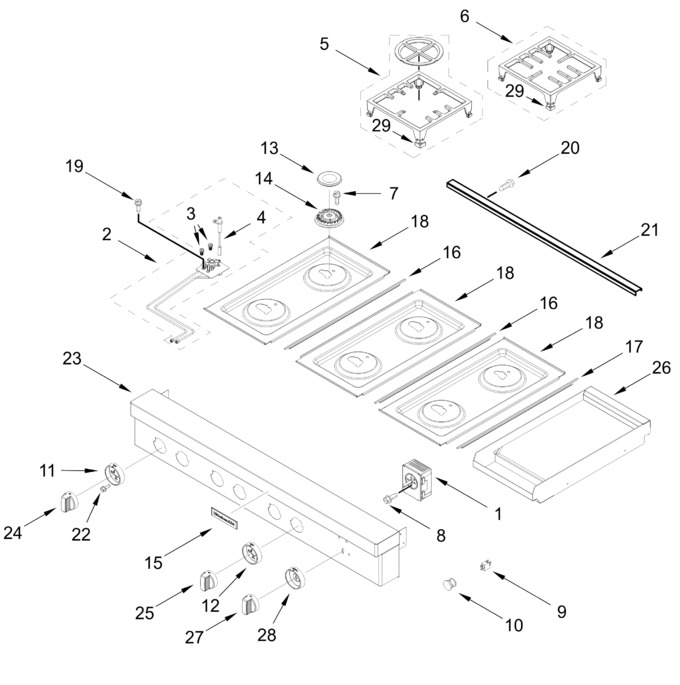

Burner Box And Griddle Parts


Cooktop, Burner, And Griddle Parts


Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11318834		Control, Griddle   (Replaces: W11033497)			Immediately	$ 356.52
2	W11337062		Orifice Holder Assembly   (Replaces: W10892771)			Immediately	$ 128.25
3	W11643164		Orifice, Main (17.4k)   (Replaces: W10892422)			Immediately	$ 65.21
4	W11580024		Igniter   (Replaces: W11238758)			Immediately	$ 23.66
5	W11380124		Burner, Grate (with Wok Ring)   (Replaces: W11291183)			Immediately	$ 200.19
6	W11380128		Burner, Grate   (Replaces: W11291179)			Immediately	$ 201.04
7	W11643628		Screw   (Replaces: W11323261)				$ 14.75
8	W10674068		Screw				$ 24.39
9	W10116114		Light, Indicator Housing			Immediately	$ 93.57
10	W10294500		Lens, Indicator Light				$ 7.69
11	W11380145		Bezel (rear Burners)   (Replaces: W10883433)				$ 65.07
12	W11380146		Bezel (front Burners)   (Replaces: W10881642)				$ 65.07
13	W11344538		Cap, Burner (black, Set Of 6)   (Replaces: W11121390)			Immediately	$ 171.43
14	W11344539		Spreader, Flame   (Replaces: W10891746)			Immediately	$ 141.16
15	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 76.20
16	W10271524		Trim, T-strip (black)				$ 212.34
17	W10291193		Trim, L-strip		Appelez-nous	-
18	W11344755		Panel, Left Cooktop (black)   (Replaces: W11038235)				$ 199.76
19	7101P42660		Screw		Appelez-nous	-
20	7101P33860		Screw		Appelez-nous	-
21	W11355761		Trim, Island		Appelez-nous	-
22	W11674763		Screw   (Replaces: W10919387)				$ 14.76
23	W11392646		Panel, Console   (Replaces: W10878405)				$ 695.35
24	W11380561		Knob, Single (stainless)   (Replaces: W10912166)			Immediately	$ 81.20
25	W11380562		Knob, Dual (stainless)   (Replaces: W10883172)				$ 79.24
26	W11602621		Griddle Module Assembly   (Replaces: W10891745)			Immediately	$ 1,547.02
27	W11392643		Knob, Griddle (stainless)   (Replaces: W10912167)		Appelez-nous	-
28	W11388057		Bezel, Griddle (stainless)   (Replaces: W10886700)		Appelez-nous	-
29	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
	ARIAAF500666C720DCD9473019FE0249BA6		(left Rear, Right Center Rear)		Appelez-nous	-
	ARICC315D341C2410B1C23C8B42A71BD901		(left Rear, Left Center Front, Left Center Rear, Right Center Rear)		Appelez-nous	-
	ARI5176DC7BCD528CAA83FE8E7749EF8817		(right Center)		Appelez-nous	-
	ARI55C06F183F5209A80F64451115E0C931		(left)		Appelez-nous	-
	ARI96BA0D36FA6A631E80C7BFCE86BF12CD		(left Center)		Appelez-nous	-
	W11678580		Screw   (Replaces: W11323309)				$ 14.78
	W11344757		Panel, Center Cooktop (black)   (Replaces: W11038257)				$ 199.76
	W11392645		Panel, Center Cooktop (black)   (Replaces: W11038243)				$ 491.89
	W10892438		Orifice, Simmer (5k)				$ 99.86
	W11661909		Orifice, Simmer (2.6k)   (Replaces: W10892435)			Immediately	$ 75.02
	W11672510		Orifice, Main (15k)   (Replaces: W10892419)			Immediately	$ 107.87
	W11344742		Spreader, Flame   (Replaces: W10891974)			Immediately	$ 134.12
	W11381271		Orifice Holder Assembly   (Replaces: W11159468)			Immediately	$ 117.04
	W11344746		Spreader, Flame   (Replaces: W10891978)			Immediately	$ 133.20
	W11628654		Igniter   (Replaces: W10892340)			Immediately	$ 54.92
	W11381273		Orifice Holder Assembly   (Replaces: W10892767)			Immediately	$ 123.40
	ARIF51CD619278F411F0D01263DCFA5380D		(assembly Breakdown Shown On Burner Box Page)		Appelez-nous	-
	W11378585		Orifice Holder Assembly   (Replaces: W10892484)				$ 123.22
	ARI8C7BF12CCD21B32D58AD00F381DE6E87		(left Center Front)		Appelez-nous	-
	ARI84ED65FEA174F07BF8F003F72E5F11AC		(left Front, Right Center Front)		Appelez-nous	-
	ARI13639990676F4BCB7E963B79A24869B9		(left Center Rear)		Appelez-nous	-
	ARI1D437A95BB9951E88D2C823ABD70D6CC		(left Rear, Left Center Front, Right Center Rear)		Appelez-nous	-
