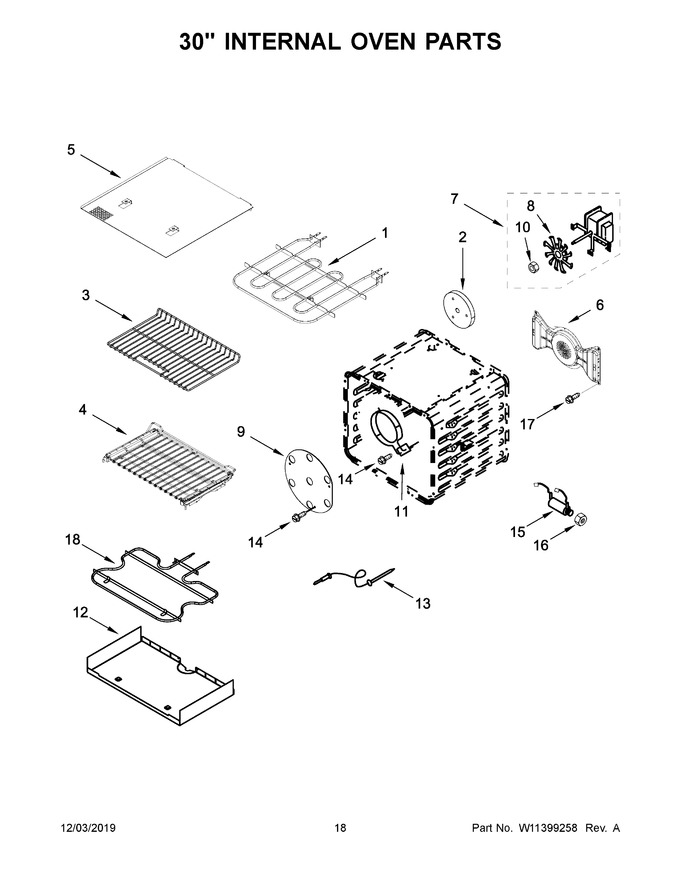

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10115994		Element, Broil				$ 299.72
2	W11688507		Insulation, Convection Cover   (Replaces: W10282821)			Immediately	$ 27.10
3	W11550107		Rack, Oven   (Replaces: W10570887)				$ 117.11
4	W11496977		Rack, Oven (sliding)   (Replaces: W11108461)				$ 452.64
5	W10160856		Shield, Element Broil		Appelez-nous	-
6	W11662207		Baffle, Convection   (Replaces: W11212180)				$ 173.23
7	W10860984		Fan, Convection   (Replaces: W10722667)			Immediately	$ 176.41
8	W10819914		Blade, Fan   (Replaces: W10631503)			Immediately	$ 88.67
9	W10261523		Plate, Fan				$ 77.85
10	W10794042		Nut, Acorn (lh)   (Replaces: W10631504)				$ 13.14
11	W11643125		Element, Convection Steam   (Replaces: 9762242)			Immediately	$ 126.84
12	W11320540		Tray, Hidden Bake   (Replaces: W11109421)		Appelez-nous	-
13	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 92.12
14	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
15	8186589		Jack, Meat Probe   (Replaces: 9755543)			Immediately	$ 108.02
16	W11231343		Nut, Locking   (Replaces: W11033111)				$ 13.47
17	W10739592		Screw		Appelez-nous	-
18	W11783663		Element, Hidden Bake   (Replaces: W10115995)			Immediately	$ 156.37
