SELECT A DIAGRAM
01 - Cover Sheet

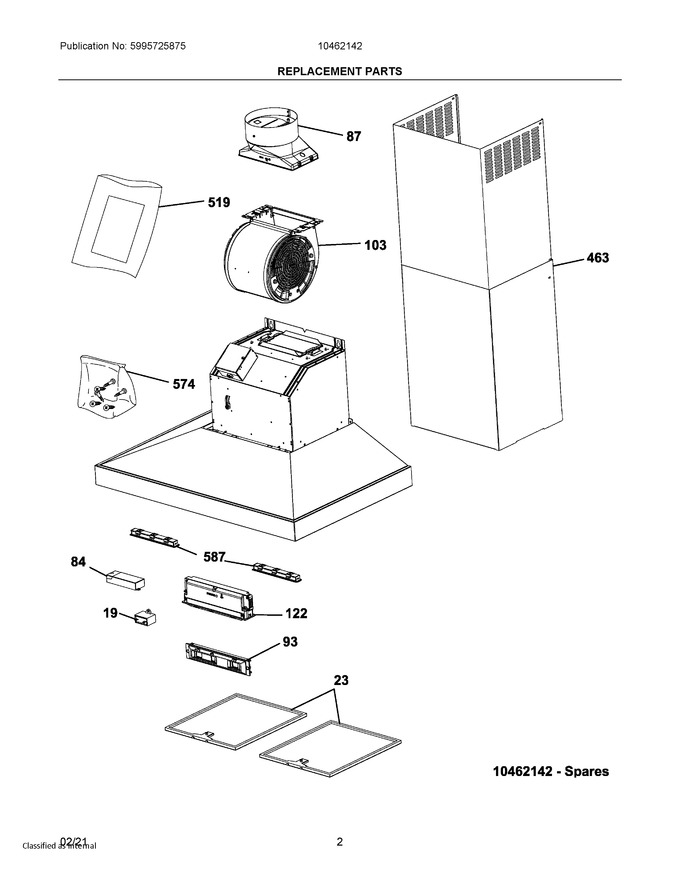

02 - Replacement Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304523602 | Capacitor |
|
- | |||||
| 23 | 5304464265 | Filter, Grease |
|
$ 108.76 | |||||
| 84 | 5304523603 | Transformer |
|
- | |||||
| 87 | 5304523604 | Connector, Pipe Or Tubing |
|
- | |||||
| 93 | 5304523605 | Cover |
|
- | |||||
| 103 | 5304523606 | Motor |
|
$ 379.94 | |||||
| 122 | 5304523607 | Slide |
|
$ 265.08 | |||||
| 463 | 5304523608 | Duct-air |
|
$ 622.28 | |||||
| 519 | 5304523609 | Instruction Sheet |
|
- | |||||
| 574 | 5304523610 | Mounting |
|
- | |||||
| 587 | 5304523611 | Lamp |
|
$ 229.79 |
