SELECT A DIAGRAM

01 - Cover Sheet

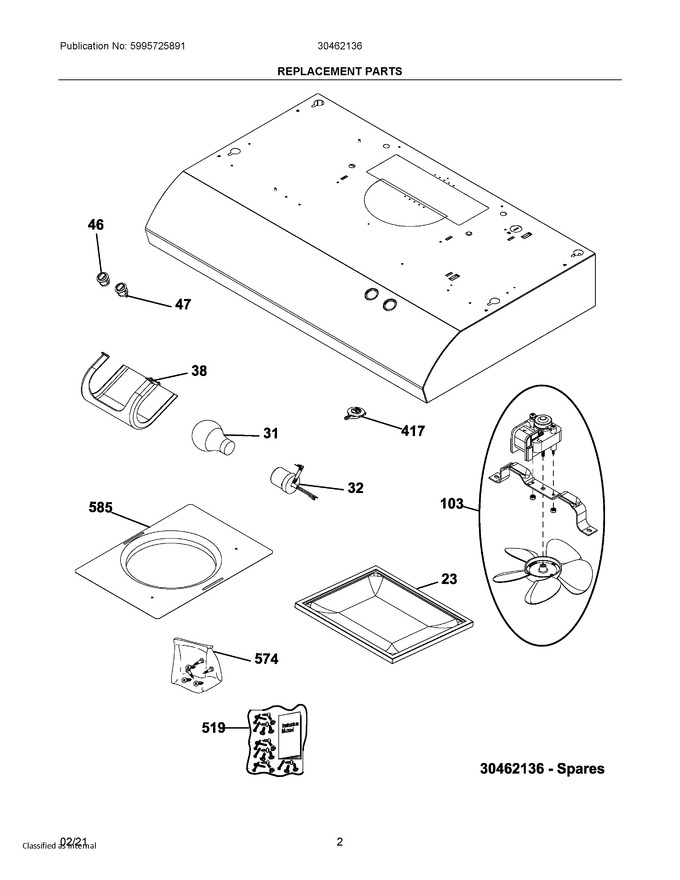

02 - Replacement Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	5304523620		Filter				$ 75.19
31	5304523621		Bulb-lamp		Appelez-nous	-
32	5304523622		Socket		Appelez-nous	-
38	5304490021		Cover, Lamp, Plastic, Lens				$ 103.89
46	5304523623		Switch-light, 2psergray11c				$ 42.53
47	5304523624		Switch-light, 3psergrey11c		Appelez-nous	-
103	5304523625		Motor				$ 220.14
417	5304490026		Latch, Retainer, Grease Filter		Appelez-nous	-
519	5304523626		Document		Appelez-nous	-
574	5304502766		Mounting Kit, Screws, 0.45 X 1.3				$ 18.43
585	5304523627		Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
