SELECT A DIAGRAM
01 - Cover Sheet

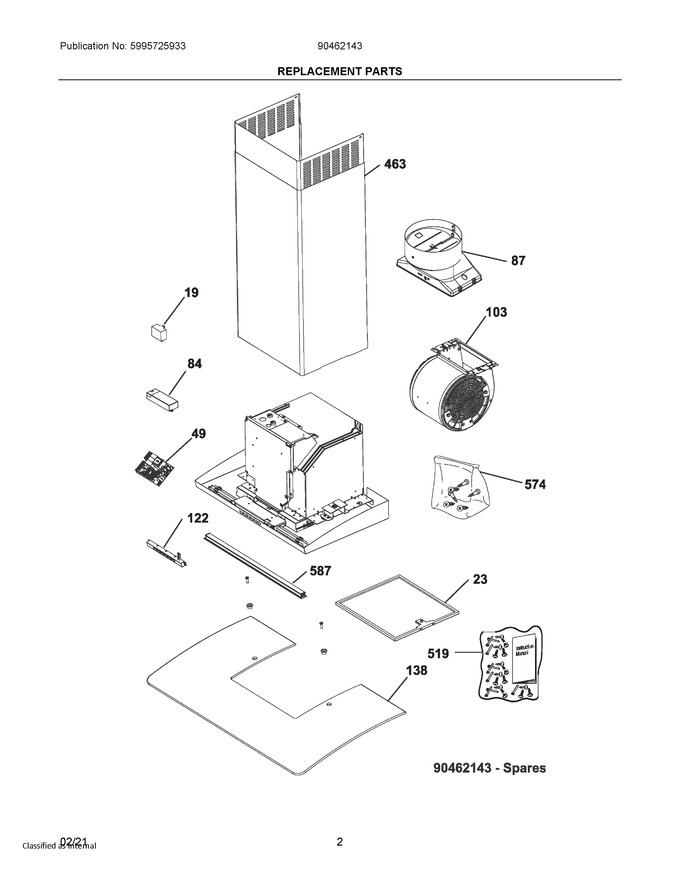

02 - Replacement Parts
03 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304523602 | Capacitor |
|
- | |||||
| 23 | 5304464265 | Filter, Grease |
|
$ 108.76 | |||||
| 49 | 5304523613 | Board-switch, Terminal |
|
$ 228.11 | |||||
| 84 | 5304523603 | Transformer |
|
- | |||||
| 87 | 5304523604 | Connector, Pipe Or Tubing |
|
- | |||||
| 103 | 5304523606 | Motor |
|
$ 379.94 | |||||
| 122 | 5304523615 | Slide |
|
$ 298.80 | |||||
| 138 | 5304523638 | Shell |
|
- | |||||
| 463 | 5304523639 | Duct, Upper, Lower |
|
- | |||||
| 519 | 5304523640 | Document |
|
- | |||||
| 574 | 5304523641 | Mounting |
|
- | |||||
| 587 | 5304523619 | Lamp, Support, Housing |
|
$ 288.94 |
