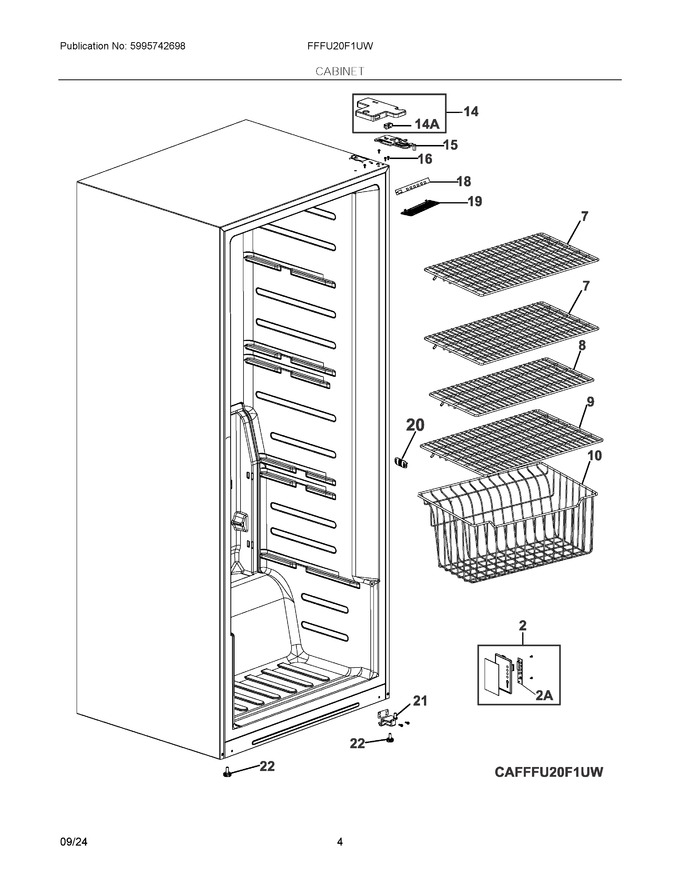

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304523656		Control Panel, Assembly, W/board		Appelez-nous	-
7	5304523660		Shelf, Wire, Upper		Appelez-nous	-
8	5304523661		Shelf, Wire, Middle		Appelez-nous	-
9	5304523662		Shelf, Wire, Lower		Appelez-nous	-
10	5304523663		Basket, Wire		Appelez-nous	-
14	5304523667		Cover Assembly, Hinge, Upper, W/switch		Appelez-nous	-
15	5304523669		Hinge, Door, Upper		Appelez-nous	-
16	5304523670		Screw Assembly, Hinge		Appelez-nous	-
18	5304523671		Pc Board, Led Light		Appelez-nous	-
19	5304523672		Cover, Led Light		Appelez-nous	-
20	5304523673		Cover, Box				$ 7.79
21	5304523674		Hinge Assembly, Door, Lower		Appelez-nous	-
22	5304523675		Foot, Cabinet Level		Appelez-nous	-
14A	5304523668		Switch, Light				$ 19.62
2A	5304523657		Pc Board, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
