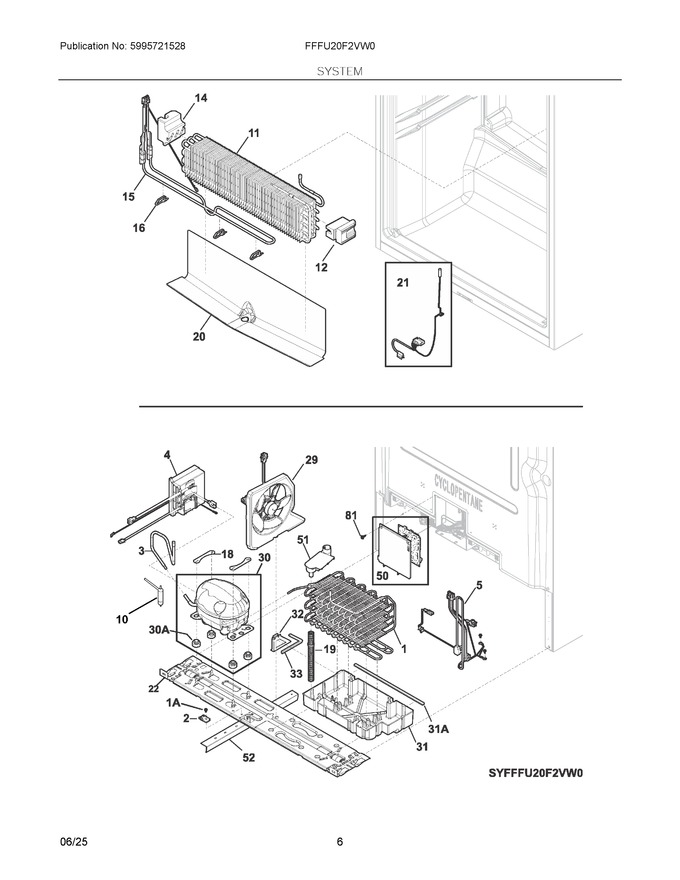

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533258		Condenser, Dynamic   (Replaces: 5304523710)				$ 153.58
2	5304454459		Clamp-cable		Appelez-nous	-
3	5304522111		Tube, Suction Jumper			Immediately	$ 33.71
4	5304523779		Inverter, Flexdrive 2.2			Immediately	$ 271.11
5	5304532290		Harness-mach.compt Vsc   (Replaces: 5304523761)			Immediately	$ 68.08
11	5304523830		Evaporator, Coil			Immediately	$ 159.63
12	5304523831		Support, Evaporator, Rh				$ 4.02
14	5304523832		Support, Evaporator, Lh			Immediately	$ 4.02
15	5304523833		Heater, Defrost			Immediately	$ 91.10
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 66.47
18	5304519812		Clamp, Compressor		Appelez-nous	-
19	5304523706		Drain Tube, Corrugated		Appelez-nous	-
20	5304524755		Trough, Drain   (Replaces: 5304523720)				$ 57.04
21	5304523788		Harness Assembly, Temp/defrost, W/thermostats			Immediately	$ 42.84
29	5304519734		Fan Assembly, Condenser, W/shroud-foam			Immediately	$ 174.43
30	5304532529		Compressor, Assembly, Tkd91e, W/grommets   (Replaces: 5304523780)			Immediately	$ 530.07
31	5304523709		Pan, Drain				$ 39.36
32	5304519745		Baffle, Drain Pan, Air Block				$ 7.80
33	5304519751		Seal, Foam, Air Block				$ 3.42
50	5304529281		Mainboard, W/housing, Erf300   (Replaces: 5304523745)			Immediately	$ 191.15
51	5304523802		Drain Jumper, Assembly		Appelez-nous	-
52	5304523694		Baffle, Divider				$ 8.84
81	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.37
1A	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 16.85
30A	5304523829		Grommet				$ 12.05
31A	5304519744		Tape, Drain Pan, Foam, Front		Appelez-nous	-
NI	5304523801		Screw, Hex Wash Hd, M4 X 10		Appelez-nous	-
NI	240569202		Screw, 8-18 X .500				$ 2.36
NI	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.37
