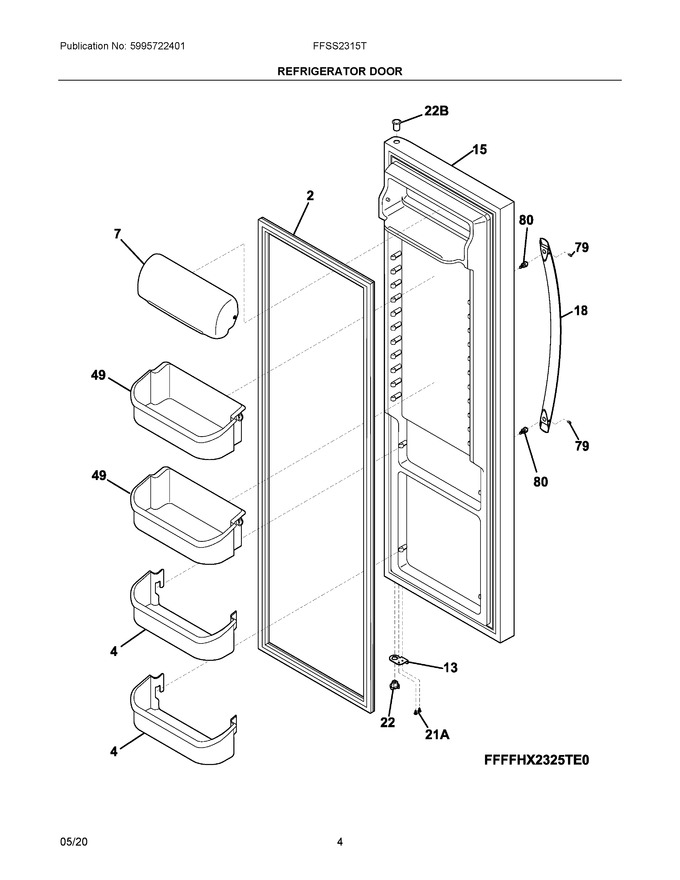

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket-refr Door, Black, Magnetic (Replaces: 241786007) |
|
Immediately | $ 105.18 | ||||
| 4 | 240363702 | Bin-door, 2-liter |
|
Immediately | $ 84.89 | ||||
| 7 | 240338313 | Door, Dairy, Clear (Replaces: 240338303) |
|
Immediately | $ 89.78 | ||||
| 13 | 240581905 | Door Stop, Black, Ref |
|
$ 66.94 | |||||
| 15 | 807460169 | Door, Black Stainless |
|
$ 518.44 | |||||
| 18 | 5304513386 | Handle, Door, Dark Stainless, W/set Screws |
|
$ 185.49 | |||||
| 22 | 242015302 | Bearing-hinge(ref), Black, Closer |
|
$ 11.80 | |||||
| 49 | 240324502 | Bin-door, Gallon |
|
Immediately | $ 114.01 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 240328404 | Bearing-hinge, Black, Upper |
|
$ 25.41 |
