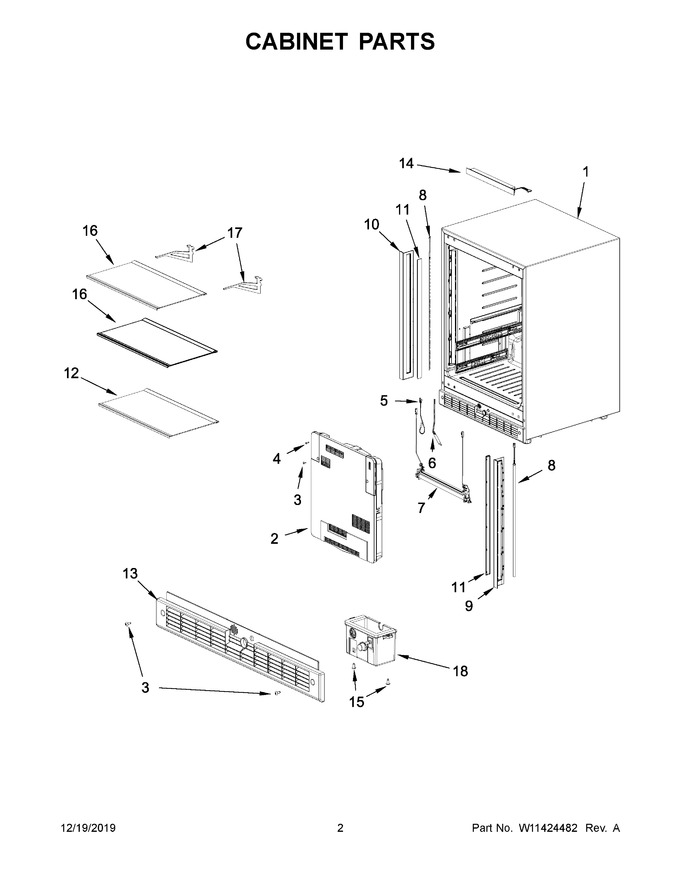

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Cabinet (not A Service Part)		Appelez-nous	-
2	W11633775		Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor)   (Replaces: W11407975)				$ 377.74
3	W11675284		Screw   (Replaces: W11371095)				$ 15.94
4	W11375760		Screw		Appelez-nous	-
5	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 121.67
6	W11359415		Fuse, Temperature				$ 109.28
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11359423		Assembly, Led				$ 205.09
9	W11359424		Cover, Led (right)   (Replaces: W11424553)				$ 109.02
10	W11395483		Cover, Led (left)				$ 100.97
11	W11359428		Cover, Led				$ 107.81
12	W11407979		Assembly, Glass Tray		Appelez-nous	-
13	W11360218		Kick, Plate				$ 121.28
14	W11424751		Assembly, Control		Appelez-nous	-
15	W11371097		Screw		Appelez-nous	-
16	W11432725		Assembly, Glass Tray   (Replaces: W11359431)		Appelez-nous	-
17	W11359432		Holder, Shelf				$ 149.57
18	W11359433		Assembly, Switch Box				$ 152.89
