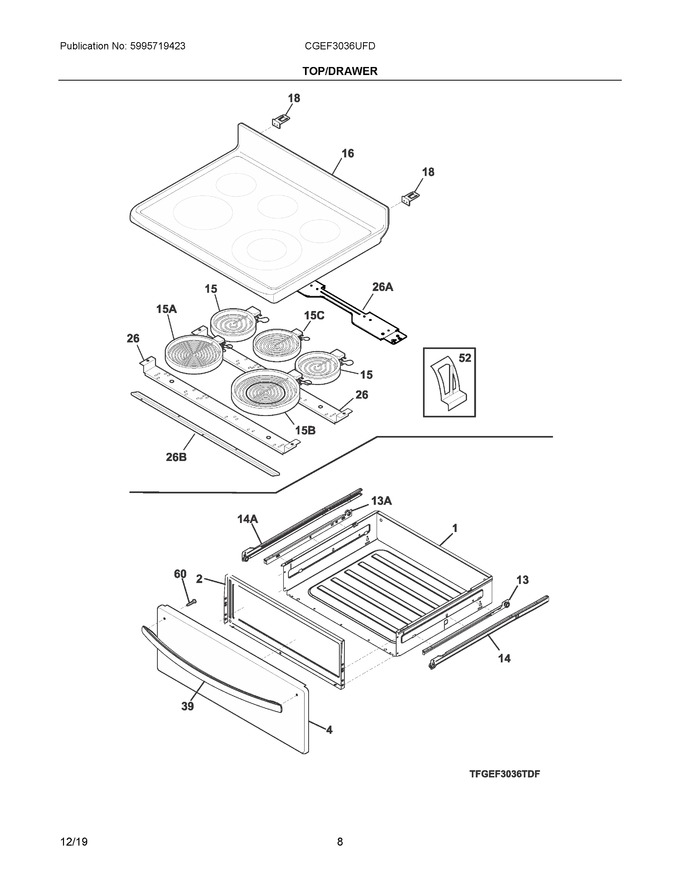

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 122.90
2	5304511827		Liner, Drawer		Appelez-nous	-
4	5304518011		Panel, Drawer, Stainless			Immediately	$ 178.75
11	5304517906		Bracket, Rear Support, (2)				$ 12.64
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 18.54
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 28.65
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 136.51
16	5304513242		Smoothtop, Assembly, Glass/steel, Black				$ 605.85
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
26	5304512926		Channel, Element Support				$ 51.35
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 187.16
52	316461700		Clip, Element Mtg				$ 13.39
60	5303288572		Screw-handle Mtg		Appelez-nous	-
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 32.19
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 53.31
15A	316530001		Element, Surface, 9", 3200w, Turbo Boil			Immediately	$ 240.18
15B	316282103		Element, 6/12", Surface, 3000w, Radiant				$ 330.19
15C	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)				$ 39.74
26A	316498200		Bracket-support, Chassis, Aluminum				$ 58.14
26B	316607600		Bracket, Chassis Support, Front				$ 58.14
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 15.75
NI	5304522953		Harness, Surface		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.53

    View Diagram in Separate Window       Print Part List
